ISO 18000-6C RFID UHF Desktop Reader Writer with USB Interface

uhf desktop reader

RJ-45/ USB2.0 UHF RFID Desktop Reader

  • Model No.: CXJ-RRW010
  • Canning material: ABS
  • Protocol: ISO18000-6C
  • External interface: RJ-45, USB2.0
  • Read speed: >100 time/s
  • Size: 160mm×110mm×35mm
  • Reading distance: 0~10cm (According to the label performance and the label working environment).
  • Written distance: 0~5cm ( According to the label performance and the label working environment).

Contact Us Now!

Description

Description

USB Interface RFID UHF Desktop Reader Writer

CXJ ISO 18000-6C RFID UHF Desktop Reader with small shape, easy to carry, suitable for assembly line location management, entrance guard, books, document management, electronic tag reading and writing as well as the background, authorization, formatting, such as operation, can be read card, writing card format, authorization, etc.

ISO 18000-6C RFID UHF Desktop Reader Writer with USB Interface

UHF Desktop Reader Feature

  • Support ISO18000-6C protocol.
  • RJ-45/USB 2.0 Multiple communication interface support.

Desktop UHF RFID Reader Typical application

  • Assembly line management
  • Tag read/write, authorization, formatting, and normal operation
  • Electronic tickets, entrance guard card machine and personnel
  • Management of assets and assets



 rfid desktop reader from cxjrfidfacatory CXJ-RRW010 UHF RFID Desktop Reader


Main technical performance index

Physical parameter

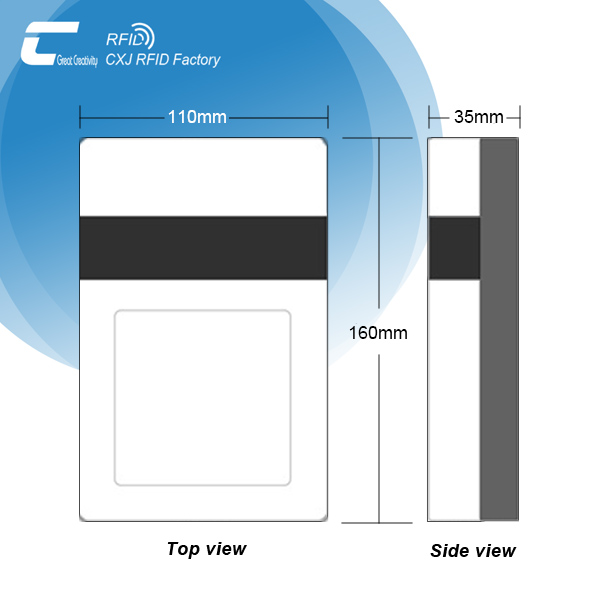

Size 160mm×110mm×35mm
Weight 350g
canning material ABS
Power DC5V/4A
operating power 1W
UHF RFID
protocol ISO18000-6C
Frequency GB: 920925MHz
output power 21dBm28dBm(software can be adjustable)
power regulation 1dB
external interface RJ-45, USB2.0
operating mode Fixed frequency or frequency-hopping mode
RJ-45  communication speed 10M/100M  self-adaption
Read speed >100次/s
antenna Internal Antenna
reading distance 010cm (According to the label performance and the label working environment)
Written distance 05cm ( According to the label performance and the label working environment )
Work environment
Work temperature -20+55°C
storage temperature -40+85°C
humidity 10%95% RH
Support
document Demo software,API,Development guidance

FAQ

  • What is your main products?
    Mainly on all kinds of passive RFID/NFC products,PVC/Metal cards:
    Which includes Business Cards,Tags,Stickers,Labels,Wristbands,Key fobs,Inlays,Epoxy tag etc.
  •  Are you OEM factory?
    Yes! We are the leading OEM&ODM manufacturer in the field of RFID products/Cards in China.
  • Can I get technical support from you?
    Absolutely.Our sales are all of good knowledge in the industry,and we have strong tech team behind to support.
  • How can I trust you?
    We are one of the TOP 10 Global Net-entrepreneur,with good reputation around the world;
    We supply products with the customers of Sumsung,Coca Cola,Disney,Nokia,British Telecometc.
    We will keep updating with you during the whole production process.
