Ultra High Frequency RFID Reader Four-Channel Reader

Four-Channel Ultra High Frequency RFID Reader

  • Model No.: CXJ-RRW014
  • Protocol: ISO18000-6B/6C
  • Size: 255mm×145mm×35mm
  • Read speed: >400 times/s
  • Antenna: External antenna
  • Work temperature: -20~+70°C
  • Storage temperature: -40~+85°C
  • Protection level: IP55

Contact us Now! or Ms. Edith Chen | Skype: live:cxjrfid

Description

Description

Ultra High Frequency RFID Reader Four-Channel Reader

Four-Channel Ultra High Frequency RFID Reader is a high-performance UHF RFID read/write device, support ISO 18000-6C/6B two kinds of protocol, working frequency: 920 MHz~925 MHz/840 MHz~845 MHz, FCC: 902 MHz~928 MHz, ETSI: 865 MHz~868 MHz, JP: 916 MHz~920 MHz, output power support 0 dBm-33 dBm, long reading distance, high speed, multi-tag recognition capability, anti-interference ability, protective performance, easy to install and use.

Ultra High Frequency RFID Reader Feature

  • RF transceiver is Impinj R2000,bi-ampsynthetic circuits.
  • ARM9 platform processor, dominant frequency 400MHz.
  • Support ISO18000-6B/6C protocol.
  • Internal Linux 2.6 operating system,support customizable development.
  • Support RJ-45/RS-232/RS-485/USB2.0/Wiegend interface and other multiple communication interfaces.
  • Independent model, die-casting full aluminium, efficient, heat dissipation.
  • Support RSSI and assess the signal Strength.
  • Support antenna detection function.
  • With extendibility of Bluetooth and WIFI wireless transmission.

UHF Four-Channel Reader Specification

Typical Applications

  • Logistics industry such as container operation management, warehouse inventory management, goods tracking etc.
  • Intelligent vehicle management such as vehicle inspection, customs clearance, car pass inspection
  • Anti-counterfeiting identification
  • Production automation, parts process management etc.
  • Electronic ticket inspection and staff card inspection etc.
  • Power Patrol, asset warehousing management etc.

Main Technical Characters

System
Operating system Linux 2.6
CPU ARM9, 400MHz
Storage DDR SDRAM:128M, ROM:256M
Physical parameter
Size 255mm×145mm×35mm
Weight 1.4kg
Body material Alloy
Input Voltage DC 24V/2.5A
UHF RFID
Protocol ISO18000-6B/6C
Frequency FCC: 902~928MHz
ETSI: 865~868MHz
GB:  920~925MHz、840~845MHz
Output power 0~33dBm(±1.5dBm)
Power regulation 1dB stepping
Frequency bandwidth <200kHz
Frequency stability ≤±10ppm

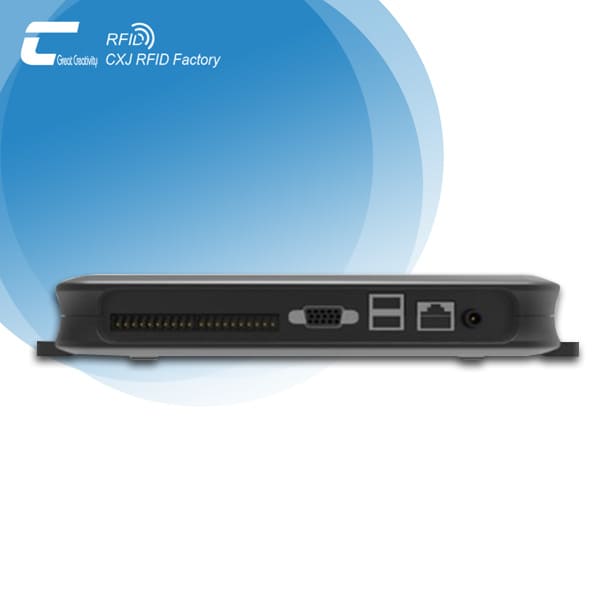

External interface RS-232,RS-485,Wiegand,RJ45,USB2.0
Work mode Fixed frequency or hopping mode
RJ-45communication speed 10M/100MEthernet interface
Reading speed >400 times/s
I/O interface 4 optoelectronic inputs /4 relay outputs
Anti-interference ability Good anti-interference algorithm,suppot reading multi-tag
Software Support RSSI,antenna detection,online update,data filteringfunction
Radio frequency interface 4 TNC antenna interfaces
Antenna External antenna
Reading distance 0~15m (depends ontag performance and usage environment)
Writing distance 0~7m (depends ontag performance and usage environment)
Working environment
Working temperature -20~+70°C
Storage temperature -40~+85°C
Atmospheric pressure 86kPa~108kPa
Humidity 5%~95% RH no condensation
Protection level IP55
Support
Documents Demo software,API,development guidance and user’s manual
