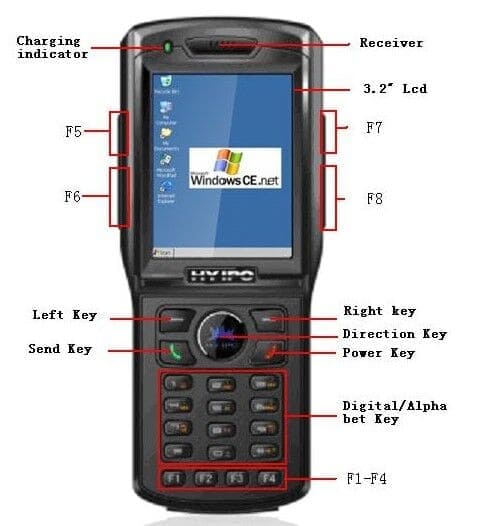

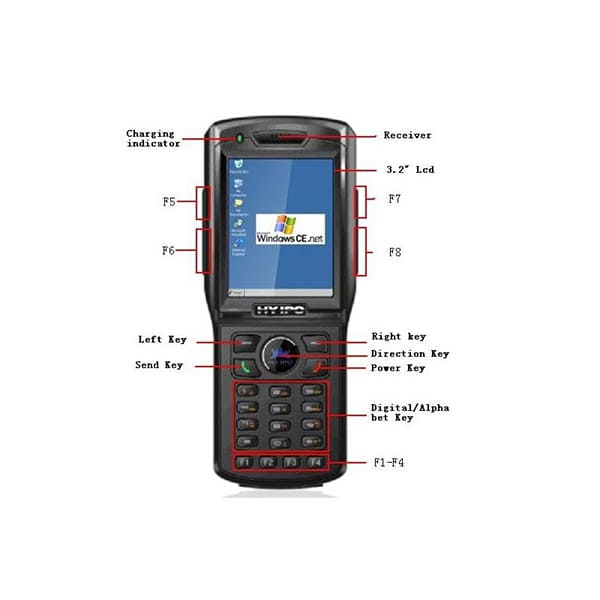

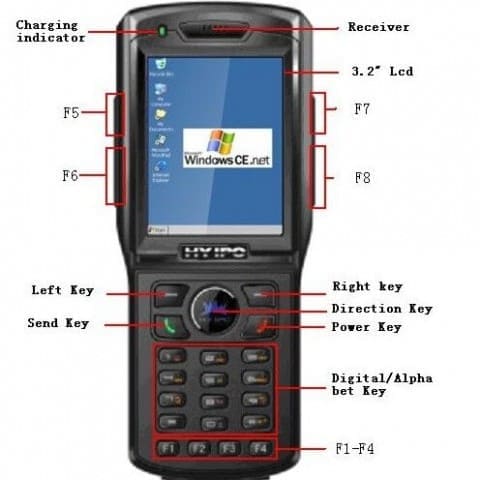

Portable 13.56mhz Handheld NFC Reader with USB Interface

Handhelds LF rfid reader,handheld nfc reader,Handheld RFID reader,RFID smart card reader,Handheld rfid readers

Handheld NFC Reader:

  • Model No.: CXJ-RRW009
  • Item: 13.56mhz handheld nfc reader
  • Company Brand: CXJ
  • Operation System: Window CE 6.0
  • Memory: 256MB SDRAM, 256MB Flash
  • Touch screen: 3.5 inches TFT
  • SDK: C++,VC,C# second development kits
  • Working frequency: HF RFID(13.56MHz)
  • Dimension: 170*80*30mm

Contact Us Now!



Portable 13.56mhz Handheld NFC Reader

Handheld nfc reader is radio frequency identification, can automatic recognize the target and access to relevant  nfc RFID signal data without human intervention, besides it’s easy to operate, can identify fast moving objects and identifying a plurality of RFID tags. Handheld nfc reader have fixed type and hand held type. The hand held type handheld nfc reader includes a low frequency, high frequency, UHF, active and so on. Generally, handheld nfc reader apply to yard management, it realize the identity of the vehicle identification, automatic deductions. If apply to long-range handheld nfc reader , can realize non-stop and avoid taking cards services or unattended channels.

Handheld NFC Reader Features:

  • Support LF , HF , UHF RFID ;
  • Support WiFi, Communicate with LAN by wireless network;
  • Outdoor user can keep in touch with Headquarters at any time by GPRS;
  • Integrated Long Range Laser Barcode Scanner;
  • Hand-write input, support signature capture function;
  • Industry IP54 Hardware design and can be used in Harsh environment;
  • Good Performance and Cost-effective.

Specification :

Item 13.56mhz handheld nfc reader
CPU ARM11 533MHz
OS Microsoft Windows CE 6.0
Memory 256MB SDRAM, 256MB Flash
Touch Screen 3.5 inches TFT touch screen, 240×320 pixels,
Keyboard 30 keys, including power, digital / English keys and function keys
Speaker Built-in speaker, high-definition output
Buzzer Yes
LED 2-colors LED, support power and GPRS indicator light
Battery 3.7V, 3100 mAh or 3.7V/5000mAh Rechargeable Lithium battery
2nd Development C++,VC,C#  second development kits
1D barcode laser or red-light engine that supports common 1D barcode :
support UPC-A,UPC-E, EAN-13,/JAN-13, EAN-8/JAN-8
2D barcode Honeywell laser that supports common 2D barcode : QR code,
Aztec, data matrix,PDF417,etc.
LF  RFID(125/134.2 KHz) Support EM4001,TK4001.
HF RFID(13.56MHz) Support ISO14443A ISO 14443A/B,Mifare S50, S70, Desfire,
Mifare pro, ultralight,FM11RF08,desfire;
or ISO 15693, ISO18000-3, like icode II, icode II SLIX,tag-it,etc
UHF RFID Support:ISO18000-6C, EPC Class 0, EPC Class 1 (GEN2)
Frequency: 860 MHz~960 MHz
Distance: 0~3m ( with U1 module)
0~7m (with U7 module)
Active RFID
Distance: 30-100 m , refer to scanning type
GPS Position: 20 channels maximum, Position accuracy:
10m, speed accuracy: 0.1m/s,
updated rate: 1s. Support A-GPS.
Wireless Communication
WiFi IEEE 802.11 b/g
Bluetooth Bluetooth Class II V1.2
3G (optional) WCDMA/EVDO/HSDPA( 850/2100MHz)
GPRS (optional) GSM/GPRS/EDGE ( 900/1800/1900MHz)
CDMA(optional) CDMA2000 1X RTT (CDMA 800/ 1900 MHz)
Expansion Interface
USB Interface Mini USB interface, support USB 2.0
SIM/UIM card slot 1 SIM/UIM card slot (supports GPRS/ CDMA)
SD card slot 1 micro SD card slot (supports up to 2GB)
PSAM card slot 2PSAM card slot
Handle (optional) Handle with barcode scanning trigger
Outward industrial design, support one-handed operation
Size (W x H x D) 170 * 80 * 30 mm
Weight  with battery: 320g
Working Temperature -15 ℃ ~ 55 ℃
Storage temperature -40 ℃ ~ 65 ℃
Humidity 5% RH ~ 95% RH (no condensation)
Charger  Input: 100~240VAC , 47-63hz , Output: 9V/1A, with a charge indicator
USB cable 12 pin communication interface , provide USB interface
Touch pen Use for handwriting input
Wrist belt Wrist belt to fasten the terminal on your hand
