860-960MHz Long Range Passive All-in-one UHF RFID Reader

860~960MHz UHF RFID Reader/Writer

  • Model : CXJ-RRW015
  • Brand: CXJ
  • SDK: Provide the demo of auto write, read; Provide C#,VC,VB,Java,Delphi routiness.
  • Frequency: UHF 860~960MHz
  • Protocol: ISO18000-6C(EPC G2)& ISO-18000-6B.
  • Support: ISO18000-6C, EPC Class 0, EPC Class 1 (GEN2)
  • Input & output: 1 road trigger input and two relay outputs (custom).

Contact us Now!  | Contact: info@cxjrfidfactory.com

SKU: CXJ-RRW015 Categories: , Tag:


Wholesale All-in-one UHF RFID Reader

UHF RFID reader is radio frequency identification, can automatic recognize the target and access to relevant RFID signal data without human intervention, besides it’s easy to operate, can identify fast moving objects and identifying a plurality of RFID tags. UHF RFID readers and tags operate at 860~960 MHz with reads of up to 10 meters, depending on the tag and the reader used. UHF RFID reader/writer have fixed type and hand held type. Generally,   860-960MHz RFID reader/writer apply to yard management, it realize the identity of the vehicle identification, automatic deductions.


  • Support UHF RFID ;
  • Integrated Long Range Laser Barcode Scanner;
  • Industry IP54 Hardware design and can be used in Harsh environment;
  • Good Performance and cost-effective.


Product Name UHF RFID Reader
Operating Frequency USA  902~928MHZ  Europe  860~868MHZ
SDK Soft Provide the demo of auto write, read
Provide C#,VC,VB,Java,Delphi routines
Communication Protocol ISO18000-6C(EPC G2)&ISO-18000-6B
Antenna parameters Antenna gain: 8DBI circular polarization
Antenna Power: 1W
Communication Interface Wiegand26\34\42、RS232、RS485Communication Interface
(Customized network port, WIFI, GPRS, etc. Output)
Input & output   1 road trigger input and two relay outputs (custom)
Product Performance Reading distance: Stable read 8 meters (9662 white card test)
Power Requirements:DC 7.5-12V,3A
Industrial lightning: 6000V Industrial lightning
Low temperature: minus 40 degrees cold treatment
Work: Buzzer
Other: Wiegand optical couples isolation
Product Specification Size:280X280X40MM Weight:5KG

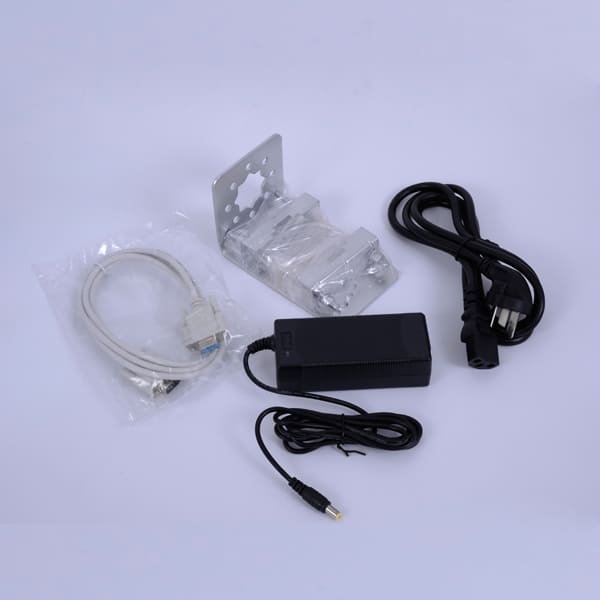

Accessories: a serial cable, a pair of mounting brackets, a set of power lines
Frequency UHF 860~960 MHz
 Support ISO18000-6C, EPC Class 0, EPC Class 1 (GEN2)
Distance 0~3m ( with U1 module)
0~7m (with U7 module)
 Contact Us Now!


  • Q1: Are you a manufacturer or trading company?
  • A1: Shenzhen Chuangxinjia Smart Card Co.,ltd is the professional manufacture over 15 years and has soloved the Samsung NFC payment, British Telecoming Card, Iranian Transportation Bus Smart Card, etc.
  • Q2: What about the shipping methods?
    A2: For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT,DHL, EMS.
    For heavy weight, you can choose to deliver the goods by air or by sea to save cost.
  • Q3: What about the payment methods?
    A3: We accept T/T, L/C for big amount, and for small amount, you can pay us by Paypal, Western Union.
  • Q4: What’s your delivery time?
    A4: Usually we produce within 8 days after receiving the payment, and shipping time for express is about 2-5days depends on destination.
  • Q5: Can I print our logo/ barcode/ unique QR code/ series number on your cards?
    A5: Yes, of course. We do customized products.
