860-960 Mhz Fixed Four-Channel Reader UHF RFID Gate Reader

Fixed Four-Channel Reader UHF RFID Gate Reader

Fixed Four-Channel Reader UHF RFID Gate Reader

  • Model No.: CXJ-RRW013
  • Price range: US $924.00 (1-10 Pieces), US $803.00 (>=11 Pieces)
  • Protocol: ISO18000-6B/6C
  • Size: 324mm×225mm×59mm
  • Read speed: >400 times/s
  • Antenna: Need external antenna
  • Work temperature: -20~+70°C
  • Storage temperature: -40~+85°C

Contact us Now! or Ms. Edith Chen | Skype: live:cxjrfid



Fixed Four-Channel Reader UHF RFID Gate Reader

860-960 Mhz Fixed UHF RFID Gate Reader is a high-performance UHF RFID read & write device, support ISO 18000-6C/6B two kinds of protocol, working frequency: 920 MHz~925 MHz/840 MHz~845 MHz, FCC: 902 MHz~928 MHz, ETSI: 865 MHz~868 MHz, JP: 916 MHz~920 MHz,output power support 0 dBm-33 dBm, long reading distance, high speed, multi-tag recognition capability, anti-interference ability, protective performance, easy to install and use.

UHF RFID Gate Reader Feature

  • RF transceiver is Impinj R2000,bi-ampsynthetic circuits.
  • ARM9 platform processor,dominant frequency 400 MHz.
  • Support ISO 18000-6B/6C protocol.
  • Internal Linux2.6 operating system, support customizable development.
  • Support RJ-45/RS-232/RS-485/USB2.0/Wiegend interface and other multiple communication interfaces.
  • Independent model,die-casting full aluminium,efficient,heat dissipation.
  • Support RSSI and assess the signal Strength.
  • Support antenna detection function.
  • With extendibility of Bluetooth and WIFI wireless transmission.

CJ2504A Four-Channel Reader

Typical Applications

  • Logistics industry such as container operation management, warehouse inventory management, goods tracking etc..
  • Intelligent vehicle management such as vehicle inspection, customs clearance, car pass inspection.
  • Anti-counterfeiting identification.
  • Production automation, parts process management etc.
  • Electronic ticket inspection and staff card inspection etc.
  • Power patrol, asset warehousing management etc.

Main Technical Characters

Operating system Linux 2.6
CPU ARM9, 400MHz
Storage DDR SDRAM:128M, ROM:256M
Physical parameter

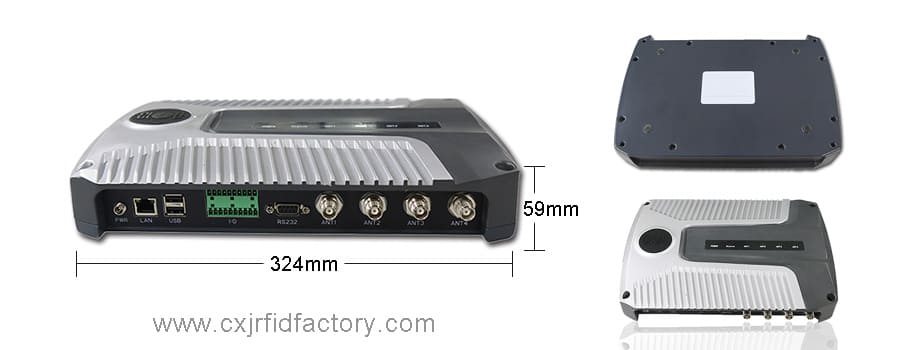

Size 324mm×225mm×59mm
Weight 2.5kg
Body material Alloy
Input Voltage DC 24V/2.5A
Protocol ISO18000-6B/6C
Frequency FCC: 902~928MHz
GB: 920~925MHz、840~845MHz
Output power 0~33dBm(±1.5dBm)
Power regulation 1dB stepping
Frequency bandwidth <200kHz
Frequency stability ≤±10ppm
External interface RS-232,RS-485,wiegand,RJ45,USB2.0
Work mode Fixed frequency or hopping mode
RJ-45communication speed 10M/100M Ethernet interface
Reading speed >400 times/s
I/O interface 4 optoelectronic inputs /4 relay outputs
Anti-interference ability Good anti-interference algorithm, suppot reading multi-tag
Software Support RSSI, antenna detection, online update, data filtering function

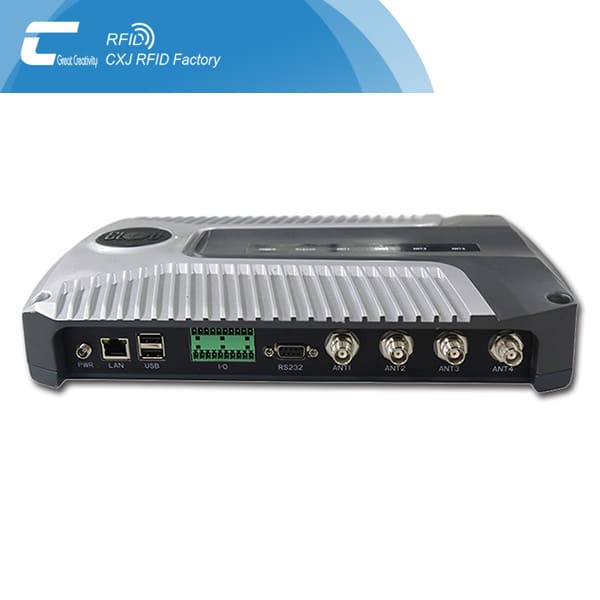

Radio frequency interface 4 TNC antenna interfaces
Antenna Need external antenna
Reading distance 0~15m (depends on tag performance and usage environment)
Writing distance 0~7m (depends on tag performance and usage environment)
Working environment
Working temperature -20~+70°C
Storage temperature -40~+85°C
Atmospheric pressure 86kPa~108kPa
Humidity 5%~95% RH no condensation
Protection level IP55
Documents Demo software, API, development guidance and user’s manual

Packaging & Delivery

  • Selling Units: Single item
  • Single volume: 7500 cm 3
  • Single gross weight: 1.5 kg
  • Package Type: The uhf RFID gate reader be packaged with opp bag and protection foam cotton. Into color box. 1pcs per box .
