Which Industries Suitable to Use NFC Chips Technology?

What is NFC chips technology?

Near field communication is a new technology. Devices using NFC technology (such as mobile phones) can exchange data when they are close to each other. It is evolved from the integration of non-contact radio frequency identification (RFID) and interconnection technology. By integrating the functions of inductive card reader, inductive card and point-to-point communication on a single chip, mobile terminals are used to realize applications such as mobile payment, electronic ticketing, access control, mobile identity identification and anti-counterfeiting.

NFC chips functions

NFC chips working mode:

  • Reader mode.
  • Induction card mode.
  • Point to point communication mode.



Difference and connection between NFC and RFID technology;

The Difference:

1) Working Frequency

The working frequency of NFC is 13.56MHz, while the working frequencies of RFID are including low frequency, high frequency (13.56MHz) and ultra-high frequency.

2) Working Distance

The working distance of NFC is theoretically 0~10 cm, so as to better ensure the security of business. But RFID has different frequencies, so its working distance ranges from several centimeters to tens of meters.

3) Working Mode

NFC supports both reader-writer mode and card mode. However, in RFID, the card reader and the contactless card are independent entities and cannot be switched.

4) Point-to-point Communication

P2P mode is supported by NFC, but not by RFID.

5) Standard Protocol

The underlying communication protocol of NFC is compatible with the underlying communication standard of high-frequency RFID, that is, ISO14443 and ISO15693. NFC technology also defines relatively complete upper layer protocols, such as LLCP, NDEF and RTD.

6) Application Field

RFID is more used in production, logistics, tracking and asset management; NFC chips works in the fields of access control, bus card and mobile payment.

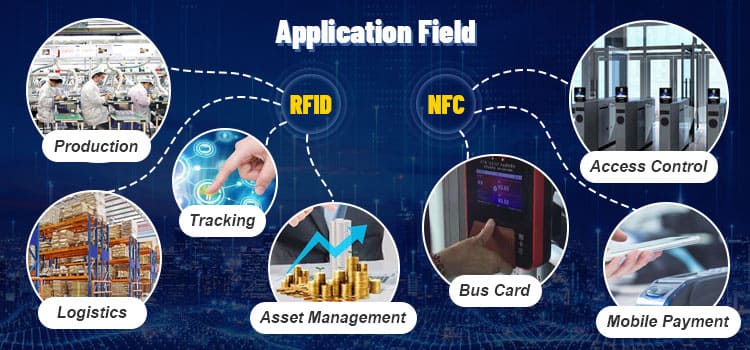

Application field of NFC chips

The Connection:

  • NFC technology comes from 13.56MHz high frequency RFID technology.
  • NFC protocol is fully compatible with high frequency RFID protocol.

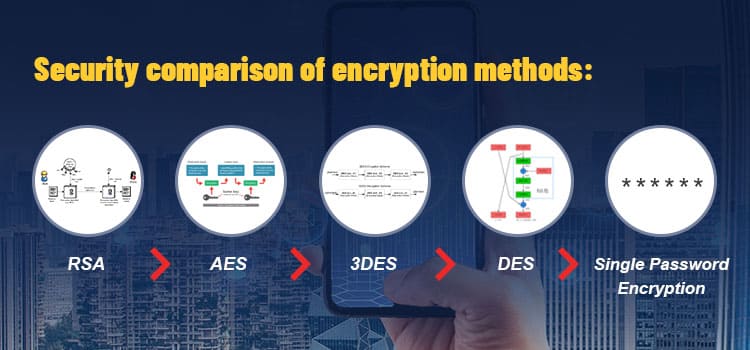

Security comparison of encryption methods:

NFC chips security comparison of encryption

1) DES: Data Encryption Standard, which is the first encryption algorithm published in the United States. The algorithm is public.

2) 2.3DES: Use 3 keys to encrypt plaintext 3 times with DES.

3) AES: Advanced Encryption Standard. Also known as Rijandael encryption method, it is used to replace the original DES.

4) RSA public key cryptosystem was put forward by three Chinese cryptographers, Rivest, Shamir and Adleman. The basic theory of RSA is the euler theorem of number theory.

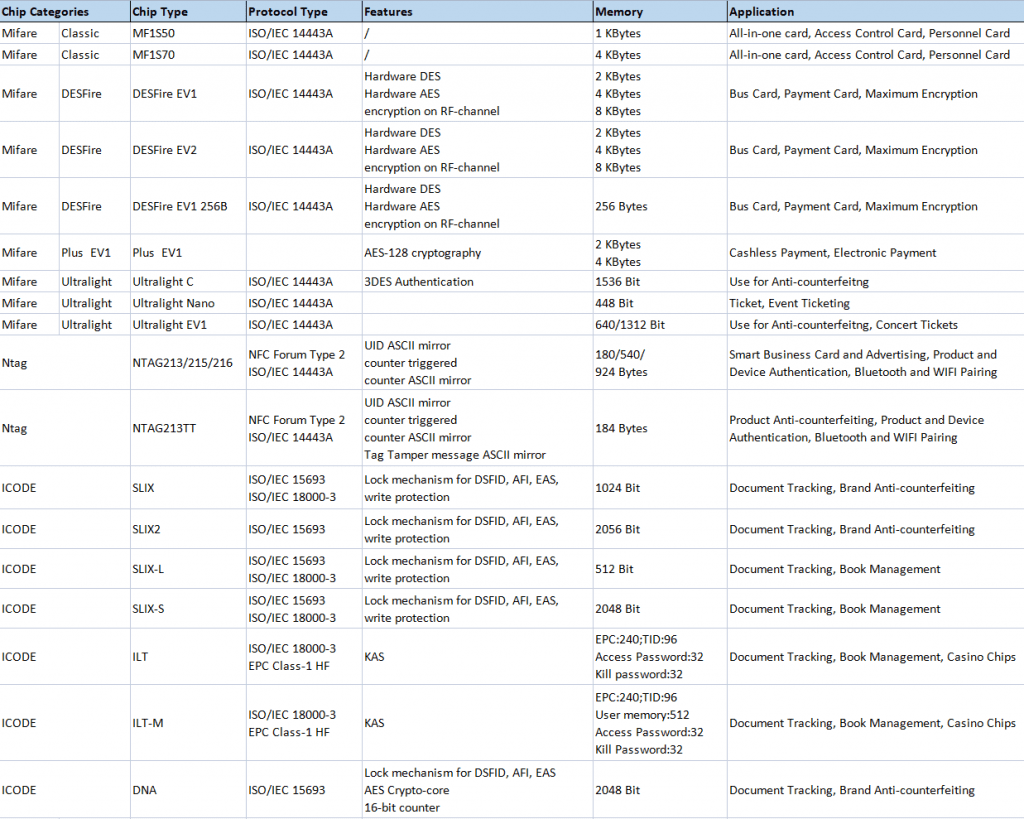

Details of NXP NFC Chips:

Details of NXP NFC Chips

Hope this article will help you to understand the knowledge of NFC chips technology. If you have any more questions feel free to contact me, we are glad to send you our free stock samples for your testing.
