What Is The Benefits of RFID Inlays – Chuangxinjia

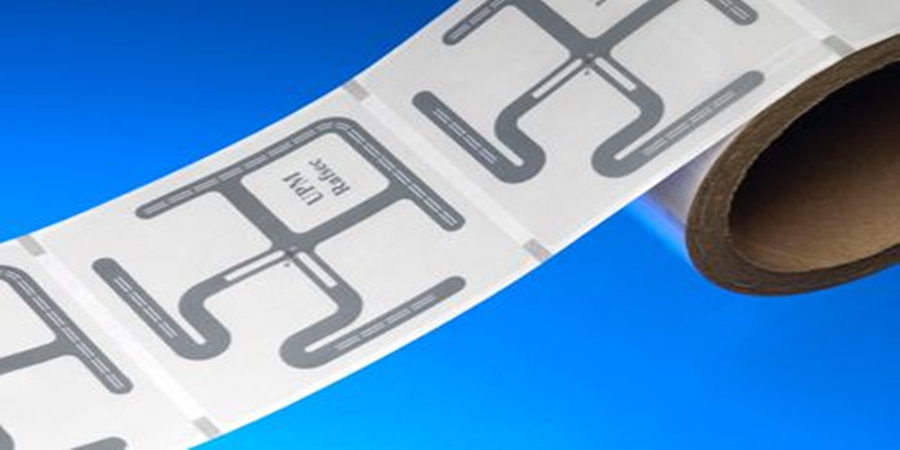

RFID Inlays

Consisting of an antenna and a contactless-enabled microchip, inlays are the actual data carriers in an RFID system. Identiv is a leading provider of RFID inlays with a wide variety of designs integrating various materials, chip technologies, and frequencies for metal and non-metal environments.

Chuangxinjia’s inlays are produced using advanced flip-chip technology and state-of-the-art, high-volume die-bonding processes with integrated inline quality and process control to guarantee superior quality and optimal performance. These transponders come in a variety of shapes with different antenna designs and materials to meet customer requirements. For individual projects where Chuangxinjia‘s existing inlay designs are not directly applicable, we provide customized purpose-built, high-performance inlays to address specific customer and application needs in order to meet today’s and future market demands.

Dry (chip + antenna + epoxy glue + [PET] film) or wet (with adhesive backing) inlays can be directly embedded into third-party products or converted into finished products in a series of applications, including, but not limited to:

  • Internet of Things (IoT)
  • NFC (e.g., smart posters and billboards)
  • Library applications
  • Ticketing (e.g., event and transportation)
  • Industrial (e.g., automotive and chemical)
  • Logistics and supply chain
  • Asset management
  • Pharmaceutical and medical applications
  • Device authentication and counterfeit protection
  • Electronic games applications
  • Event management
  • Wearable items
  • Loyalty programs


Benefits of RFID Inlays:

  • Proven success on major large-scale projects
  • Innovative and flexible bond production processes
  • Integrating various standard and special production materials (e.g., high temperature requirements, chemical exposure, or mechanical stress)
  • Using customized antenna design and dimensions (e.g., small inlay diameter 8.7 mm or 0.343 in) with a variety of shapes and dimensions available
  • Special inlay frequency tuning (e.g., suitable for on metal applications)
  • High-capacity manufacturing plant for large volume production (ISO-9001 certified)
  • Can provide in-house conversion process to build labels, tags, and ticket applications
  • RFID-chip programming options (available at a premium cost)
  • Available in a more complex inlay design with dual RFID chips and antennas or in a battery-enabled design (e.g., active inlays)
  • Technical Data
  • Giant NFC Transponders Dry and Wet Inlays Data Sheet
