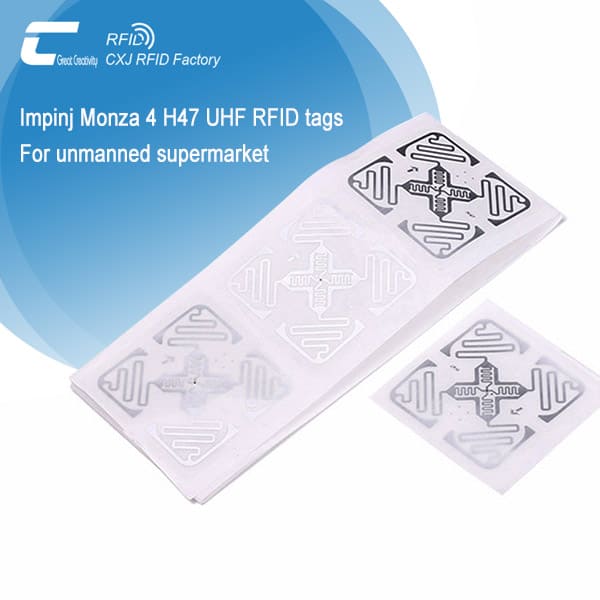

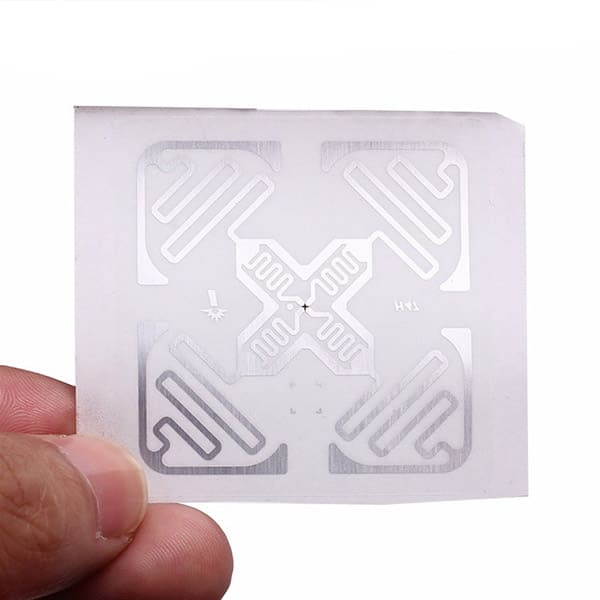

Impinj Monza 4 H47 True 3D UHF RFID Sticker for Unmanned Supermarket
UHF RFID sticker for unmanned supermarket
The UHF RFID sticker is designed in RFID technology with Impinj Monza 4 chip inside, it is complaint with EPC C1G2 (ISO18000-6C) standard and it fits for all 860-960mhz UHF RFID readers and antennas. It is mainly used for tracking luggage, apparel, logistic, asset etc. And it’s popular choice for unmanned supermarket (retail) due to true 3D features. Shape of label, long reading range is around 6-8 meters, self adhesive which makes it an excellent product for various objects’ management.
- True 3D antenna technology.
- Two independent antenna port, high performance.
- Available memory options to support large user-memory application.
|Product name||Impinj Monza 4 H47 true 3D UHF RFID sticker for unmanned supermarket|
|Support||EPC Global Class1 Gen2 & ISO 18000-6C|
|Chip||Impinj Monza 4|
|TID area||48 bits, read only, unique ID of chip.|
|EPC area||Up to 496 bits|
|User area||Up to 512 bits|
|Password area||32 bits Access,32 bites Kill|

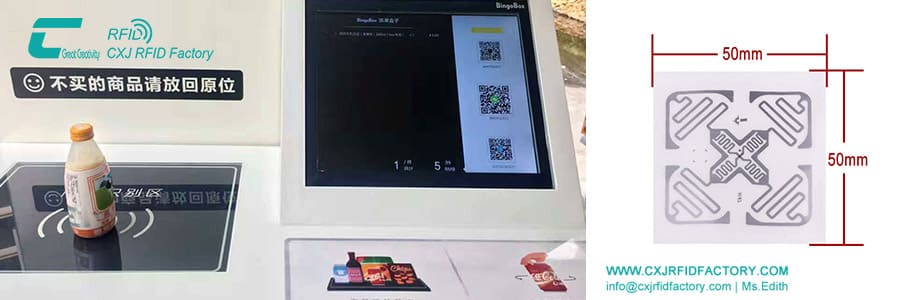

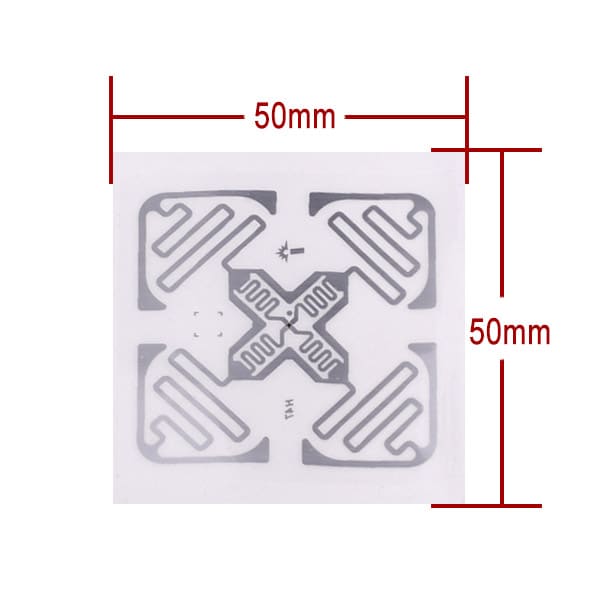

|Size||50 x 50 mm or customized as your size request.|
|Material||Paper, waterproof PVC, PET etc.|
|Printing||Custom logo printed as your artwork.|
|Custom options||Barcode / QR code printed, TID number printed, chip encoding.|

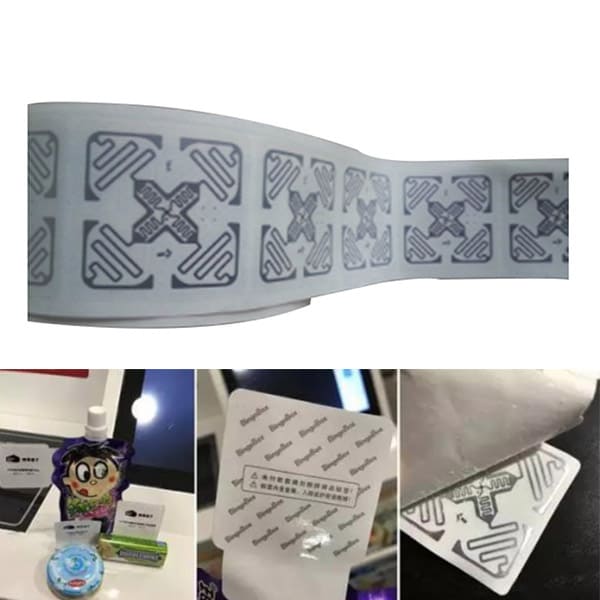

|Packaging||Pack in roll, 2000/roll or as your request.|
|Sample||Free samples for function testing.|

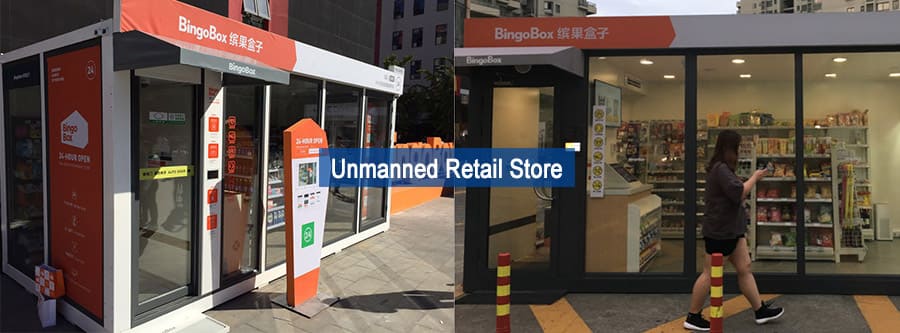

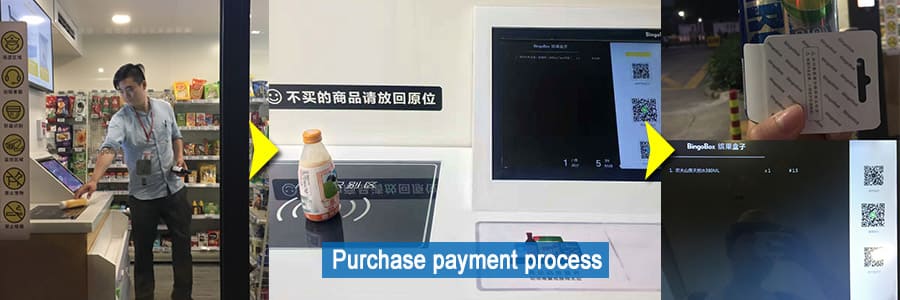

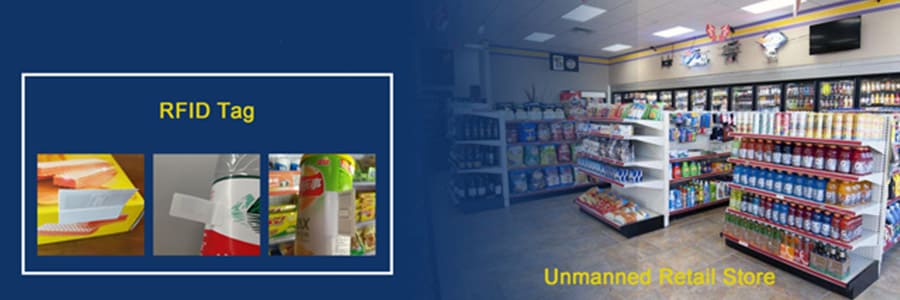

Application example like BingBox
Q: Do these labels have unique ID each label?
A: Yes,it has unique ID number of each chip,we called TID.
Q: Any similar items with same function?
A: Yes, dry inlay(without surface material & adhesive), wet inlay(with adhesive but without surface material), if you need both printing and glue, please choose RFID asset sticker. And it’s no problem if you need other UHF chip options.
Q: Can you provide hardware and software?
A: We can provide reader and antenna,if you want to develop your own software, we suggest to find a local software company to help.
Q: What’s the payment term?
A: We can accept for T/T, Paypal, Western Union, Visa credit card. Full prepaid for small orders and 50% deposit and balance 50% before shipping for big quantity.
Q:What’s the delivery way?
A: We have VIP accounts in Fedex, DHL and UPS, we can get a low discount from them. If you want us to send goods to you by Express, this will helps us to save money and low the price.
