HF Anti-Metal PVC NFC Tags Round NFC Chip
Anti-Metal PVC NFC Tags：
Model No.: anti-metal tag-02
Company Brand: CXJ
Material: coated paper/PET/PVC with rfid inlay, antimetal layer and back glued
Size: dia25/30/35mm, 25*25mm, 30*30mm or customize
Printing: full color custom printing or blank
Application：For place on metal surface
Description

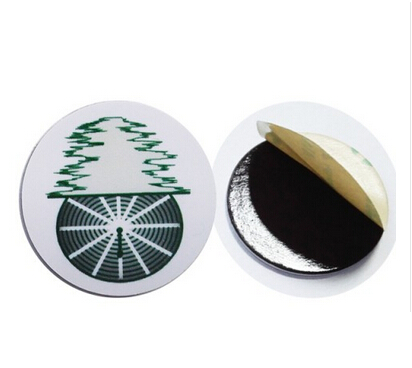

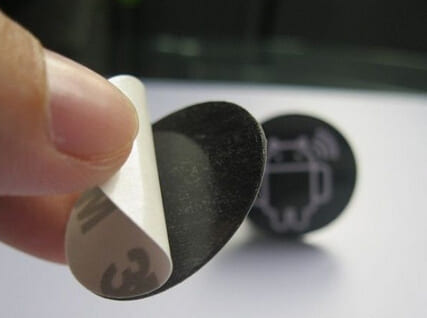

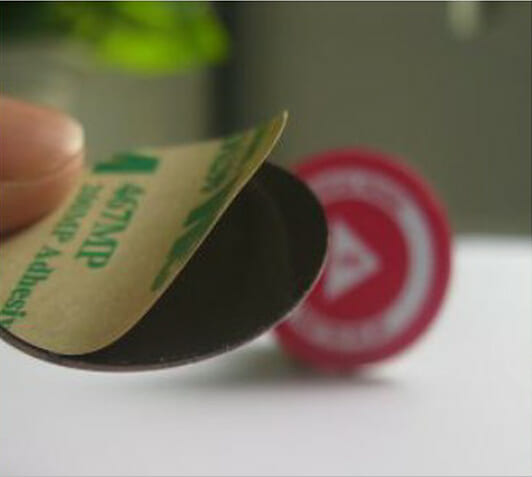

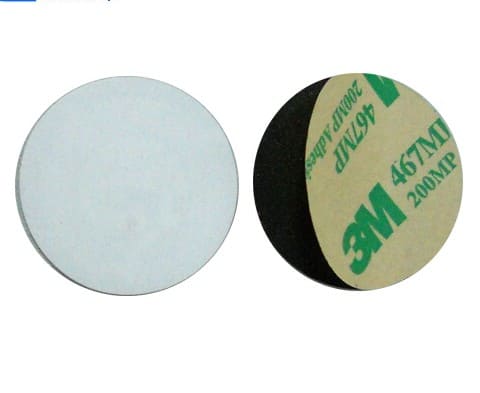

Anti-Metal PVC NFC Tags：
Anti-Metal PVC NFC tags is also known as metal RFID tag, anti metal RFID label, metal adhesive RFID label. It is made of special rubber magnetic sticky film and electronic tag on its back side. This type of tag technically successfully solves the issue of unable to read the RFID when it is attached to a metal surface.
Under perfect conditions, reading distance of Anti-Metal PVC NFC tags are:
Low frequency: 1-5 cm, with small memory, widely applied in animal tracking, parking system, etc.
High frequency: 2-10 cm, with big memory, is widely applied in various fields.
Ultra high frequency: 1-10 m, the most sensitive, easy to be affected by humidity, dust, temperature, etc
Specifications:
| Application | For place on metal surface
Asset management NFC–>cashless payment, connect bluetooth speaker control, etc Transportation–> non-stop electronic toll collection, auto oiling |
| Material | coated paper/PET/PVC with rfid inlay, antimetal layer and back glued |
| Common Size | dia25/26/30/35mm,
25*25mm, 30*30mm or customized |
| Printing | 4/4 color custom printing, uv printing |
| Surface | Glossy finish or Matt finish |
| Available Craft | 1. QR code, serial number, UID number printing
2. chip encode, lock and encryption |
| Available Chip | LF, HF, UHF |
| Protocol | ISO14443A
ISO15693 ISO18000-3 ISO18000-6C |
| Package | 1. Standard package: 50pcs/opp bag, 500pcs/box, and 10000pcs/ctn
2. Other custom package accepted |
