Wholesale 13.56MHz HF Inlay | RFID Inlay manufacturers

rfid inlay manufactures

Model No.: CXJ-DWI003

Company Brand: CXJ

Chip Frequency: HF

Thinkness:(UHF)Dry inlay 0.15mm, wet Inlay 0.23MM; (HF)Dry inlay 0.07mm, wet Inlay 0.15MM.

Description

Description

RFID Inlay manufacturers

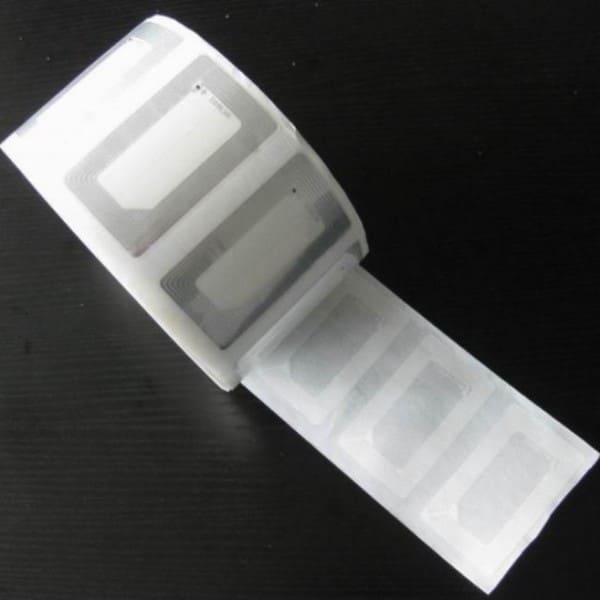

13.56MHz High Frequency RFID Inlay manufacturers

RFID Wet Inlay Features:

Unlike RFID prelam is a semi product which is used for making RFID cards and other related products. RFID Inlays can be used directly as RFID wet inlay and RFID dry inlay. The dry inlay is typically supplied on a substrate or carrier. If coating with adhesive, it is called a wet inlay. RFID white Wet Inlay is convenient and simple, more widely used.

RFID inlays are composed of an IC (Integrated Circuit, Chip) and a Dipole antenna. To attach the antenna to the IC we commonly use a strap.

RFID inlay can be either “wet” or “dry” ,RFID HF Inlay.

*RFID Wet inlay are inlays that have an adhesive backing with a clear or colored top surface of PVC, PET or paper, the PVC or PET wet inlays are commonly used to make “RFID Labels” where the inlay is placed on the back of the label with the adhesive side away from the label side so that the label has continuous adhesive. PLacement of the wet inlay on the label is very specific to each RFID printer, in order to be programmed correctly by the printer and also to minimize the risk of damaging the RFID inlay while in the printer.

*Dry inlays are inlays that are attached to the substrate backing material commonly called the web.

Specifications:

RFID Inlay manufactures

Material Inlays (on Transparent PET substrate) with or without adhesive side.
Common Size 85.6×54,82×23,Ф30,30×26,etc.Can be customized.
Thickness (UHF)Dry inlay 0.15mm, wet Inlay 0.23MM.

(HF)Dry inlay 0.07mm, wet Inlay 0.15MM.

Package For single piece : 100pcs/opp bag; 20 bags/inner box 6*9.3*22.5cm; 10 boxes/outer carton 13*23.5*50cm.

For roll package: 2000pcs/roll or 5000pcs/roll.

Other custom package accepted.

Delivery Time 8~15 days based on QTY.
Shipping By express, sea or air, We will take photos or show you the goods by video after finish the goods to make.

Sure quality and quantity are not an issue to stop our business relationship.

Payment term T/T, Paypal, Western Union, L/C, RMB
MOQ 500pcs
Free Sample HF RFID Inlays Available at any time
