Broadcom Topaz 512 Printable NFC Stickers

printable NFC stickers

Model No.: CXJ-NFCT07

Company Brand: CXJ

Material: Glossy coated printable paper with matrix on

NFC Chip: Broadcom Topaz 512

Frequency: 13.56Mhz/HF

Protocol: ISO 14443A

Size: Round 29mm or others

Description

Description

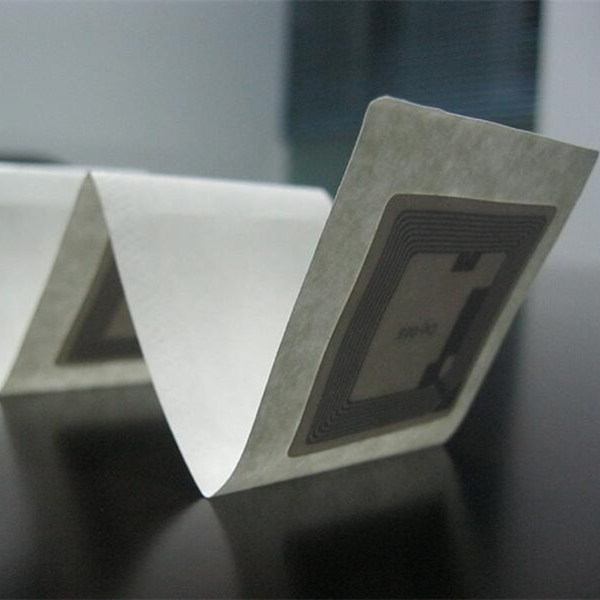

If you want to print the NFC stickers by yourself, then printable NFC stickers will be the good choice. Printable NFC stickers are whole sheets which suitable for Inkjet and Memjet printers. With printable NFC stickers, you can have high quality printed NFC stickers without a long leading time and high MOQ.

Specifications:

Material Glossy coated printable paper with matrix on
Adhesive Yes
Printable Inkjet, Memjet
Matrix On
Size 30mm diameter circle stickers, 20 mm diameter antenna, 200 x 280 mm sheet of 35 kiss cut stickers in a 5 x 7 layout, 35 stickers per sheet



Other size:

Round: 15/18/20/22/23/25/29/30/32/38/40/50mm etc

Square: 19/25/29/30/35/38/50mm etc

Rectangle: 15*20/24*34/25*38/30*35/42*26/44*55/50*80/54*85.5/55*85 etc

Other More Size and Shape Can be Customized

Thickness 0.27 mm or customized
Frequency HF:13.56Mhz
Protocol ISO14443A
Reading Distance 3-10cm
Available NFC Chip 1).Type1

Broadcom Topaz 512(454 bytes);

2).Type 2

NXP Ntag213 (144 bytes)

NXP Ntag215 (504 bytes)

NXP Ntag216 (888 bytes)

MIFARE Ultralight®EV1 (48 bytes)

MIFARE Ultralight®C (148 bytes)

MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.

3)Type 4

MIFARE® DESFire® EV1 2K

MIFARE® DESFire® EV1 4K

MIFARE® DESFire® EV1 8K

MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.

4)MIFARE®(1K bytes)

MIFARE and MIFARE Classic are trademarks of NXP B.V.

5)MIFAREPlus®

MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.

6) FUDAN FM11RM08,TI2048,NXP ICODE SLI ,NXP ICODE Slix chip etc

Delivery Format Sheet
Payment term T/T, Paypal, Western Union, L/C, RMB
Free Sample Available at any time

What’s NFC?

Near Field Communications (NFC) is a short-range wireless radio frequency identification (RFID) tech that can transmit data between two electronic devices with physical touch, or close to each other. NFC typically operates at HF 13.56MHZ ISO14443A protocol and a distance of 4 centimeters or less.

An NFC tag is a small passive (no battery) device which contains a tiny microchip attached to a small loop antenna. When the tag is scanned by an NFC reader such as a mobile phone, it powers up and wirelessly transfers information such as a web address, text or a command for an App. The NFC tag can be locked so that the data on the tag cannot be changed or left unlocked so the data can be changed again and again. NFC tags are typically printed stickers or plain stickers, but they can be also enclosed in NFC products such as keyfobs, wristbands, hang tags and many other items.

Most of mobile phones have NFC application and make today’s life smarter and easier. We can use NFC function to payment, identify, date exchange, information share. NFC sticker can affix on phone backside or anywhere if you want. Customer can rewrite URL, text, number into NFC sticker which embedded NFC chip inside. Generally they are 13.56mhz and ISO 14443A protocol. We can chose them depend on their user memory.
