860-960Mhz UHF Long Range Reader Wireless Integrated Reader

uhf long range reader

6M UHF Fixed RFID Integrated Reader

  • Model Number: CXJ-RRW003
  • Place of Origin: Guangdong, China (Mainland)
  • Frequency: Operating Frequency:860MHz – 920MHz, frequency band adjustable.
  • Reading Distance: 0-6m, 8dbi built-in antenna
  • Protocol: RS232, RS485, Wiegand
  • Power: 9V-15V
  • Size: 235*235*57mm
  • Optional: TCP/IP, WIFI

Contact at: info@cxjrfidfactory.com

Description

Description

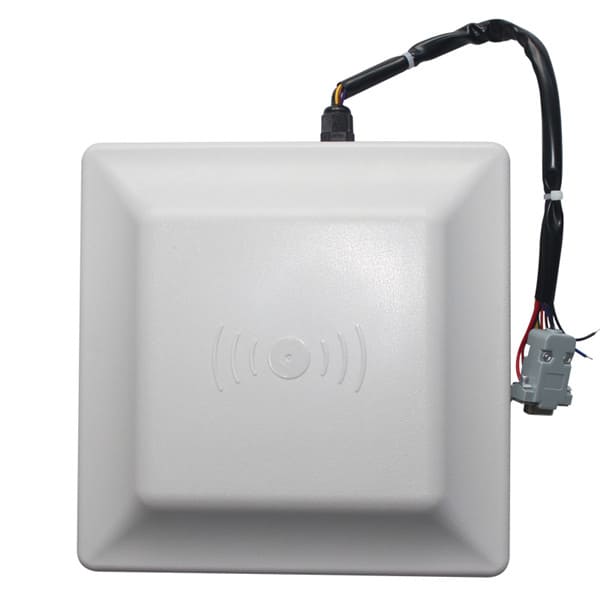

UHF Long Range Reader Wireless Integrated Reader

860-960Mhz UHF Long Range Reader is a high performance UHF integrated RFID Reader which integrated antenna and reader, support ISO18000-6C/6B protocols. It can be widely used for varies of RFID system, like logistics, vehicle management, access control system, anti-counterfeiting system and production process control system.

860-960Mhz UHF Long Range Reader Specification:

  • Self-intellectual property.
  • Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag.
  • Operating Frequency:860MHz – 920MHz, frequency band adjustable.
  • FHSS or Fix Frequency transmission.
  • 8dbi antenna optional with effect distance up to 6m.
  • Support auto-running, interactive and trigger-activating work mode.
  • Low power dissipation with single +9 DC power supply.
  • Communication Interfaces:RS232,RS485,Wiegand 26 or Customized.
  • Radio frequency power:30dBm adjustable.
  • Expanding Interfaces:The WIFI interface (custom), RJ45 and other.
  • Wireless interface:EPC CLASS 1 GEN 2.
  • Antenna:Built-in 5dBi Circularly polarization antenna (horizontal/vertical customized).
  • Power Supply:DC12V input, 25W power adaptor.
  • Reading speed:less than 0.1 seconds.
  • Tag speed range:≤ 100 km / h.
  • Peak Inventory Speed: 700 tags/sec.
  • Directional card area: antenna configuration with reference configuration.
  • Software: free SDK,API(C++, C#) development kit (can be customized).
  • Operating Temperature: -40°C~+60C ,Humidity: 5%~95%(non-condensing).
  • Dimensions:210×210×70mm.
  • Weight:1.5Kg.
  • Waterproof:IP-67
 CXJ-RRW003  CXJ-RRW003  CXJ-RRW003

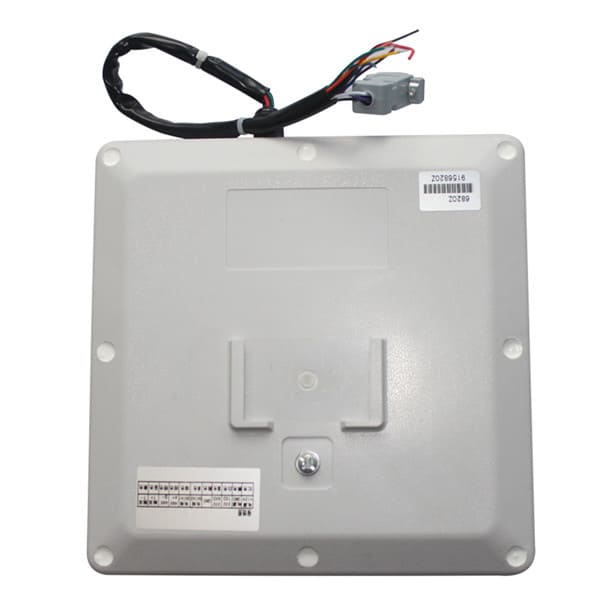

Signal Definition:

Port Cable Color Function
DC+12V Red +9V~15V positive
GND black Negative
TXD brown RS232 signal output (PIN2)
RXD Yellow RS232 signal input (PIN3)
GND Blue RS232 grounding (PIN5)
Triger Gray Trig pin
DATA0/485A+ Green Wiegand data 0 or 485 interface positive port
DATA1/485B- white Wiegand data 1 or or 485 interface negative port

Application:

  • Logistics,Warehouse storage management

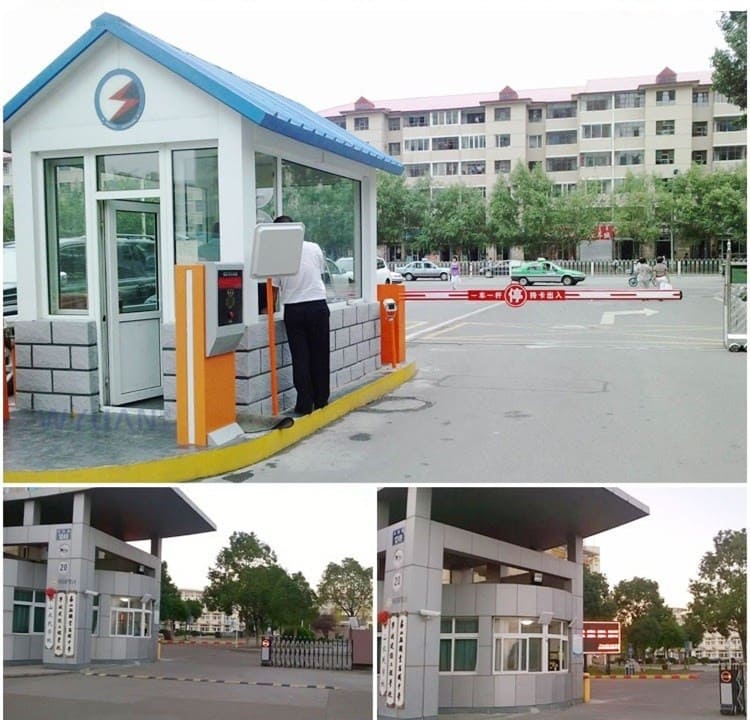

  • Intelligent parking lot management
  • Production line management
  • Product anti-counterfeiting and inspection
  • Club management,library,school roll management
  • Consuming management,attendance management
  • Eating and drinking management
  • Swimming pool management,etc.
