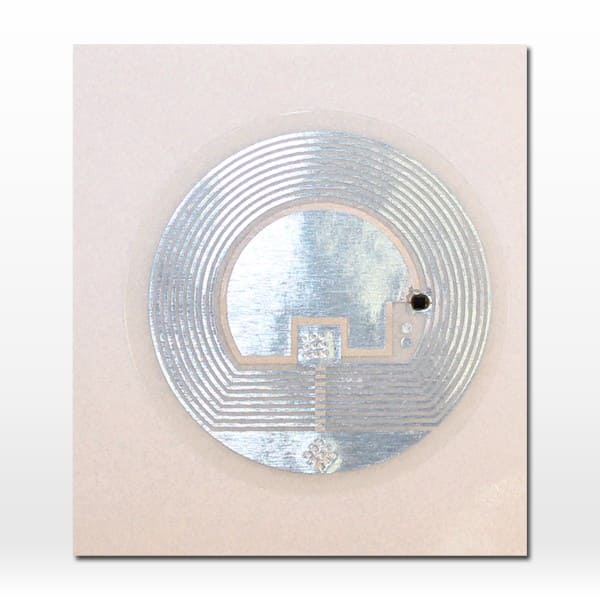

Round 25mm NTAG 216 wet inlay 13.56 mhz HF rfid nfc tags
HF NFC Tag Product Description:
Great Creativity provides Custom printing RFID NFC stickers, RFID white sticker, Clear NFC sticker wet inlay, Micro size HF NFC tag less than 10mm. If you want apply the 13.56mhz nfc tags to a metal surface. Then you need to choose Anti Metal HF rfid tag so that the RFID sticker readability will not be interfered by the metal.
A variety of shapes and sizes are offered for HF nfc tag. Custom 13.56mhz nfc tags can be one-sided or both sides printing. HF rfid tag surfaces have water-resistant paper, soft/hard PVC and eco PET. All HF nfc tag are water-resistant and durable. Just contact us for more custom service.
HF NFC Tag Specifications:
|Product Name||HF nfc tag,13.56mhz nfc tags,HF rfid tag.|
|Material||Paper, ECO material PET, PVC, etc|
|Size||Round: 15/18/20/22/23/25/29/30/32/38/40/50mm etc
Square: 19/25/29/30/35/38/50mm etc
Rectangle: 15*20/24*34/25*38/30*35/42*26/44*55/50*80/54*85.5/55*85 etc
Other Size and Shape Can be Customized
|Thickness||0.4-0.5mm, 0.8-1mm, or customized|
|Crafts||Logo printing : Digit printing, offset printing and silk printing
Number printed will be available (Serial No & Chip UID)
Chip program/encode will be available as well ( URL ,TEXT ,Number and Vcard)
Epoxy, Customize size and shape, Hole punch etc
|Available RFID Chip||Protocol ISO/IEC 14443A:
1: MIFARE Classic® 1K MIFARE Classic® EV1 1K MIFARE Classic® 4K
MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license.
2: MIFARE Plus® MIFARE Plus® EV1 MIFARE Plus® SE 1K
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
3: MIFARE® DESFire® EV1 MIFARE® DESFire® EV2
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
4: NFC Forum Type 2:
1) NTAG® 203 (144 bytes) NTAG 213 (144 bytes) NTAG® 215 (504 bytes) NTAG® 216(888 bytes)
NTAG® are registered trademarks of NXP B.V. and are used under license.
2) MIFARE Ultralight® (48 bytes) MIFARE Ultralight® EV1 (48 bytes) MIFARE Ultralight® C(148 bytes)
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
Protocol ISO 15693/ISO 18000-3:
ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2
ICODE® are registered trademarks of NXP B.V. and are used under license.
|Application||NFC mobile payment, NFC electronic intelligence posters, Electronic ticket, production identification, NFC electronic sign in, Mobile name cards, library management, entrance access, or expense, and so on|
|Package||NFC stickers can be packaged individually, in strips, on rolls, or printable sheets.
Single Piece Package: 100 pcs/Bag, 10 Bags/Box, 20 Boxes/Carton
|Shipping||By express, sea or air|
|Payment term||T/T, Paypal, Western Union, L/C, RMB|
|Free Sample||Available at any time|
What’s HF NFC Tag?
Near Field Communications (NFC) is a short-range wireless radio frequency identification (RFID) tech that can transmit data between two electronic devices with physical touch, or close to each other. NFC typically operates at HF 13.56MHZ ISO14443A protocol and a distance of 4 centimeters or less.
An NFC tag is a small passive (no battery) device which contains a tiny microchip attached to a small loop antenna. When the tag is scanned by an NFC reader such as a mobile phone, it powers up and wirelessly transfers information such as a web address, text or a command for an App. The NFC tag can be locked so that the data on the tag cannot be changed or left unlocked so the data can be changed again and again. NFC tags are typically printed stickers or plain stickers, but they can be also enclosed in NFC products such as keyfobs, wristbands, hang tags and many other items.
Most of mobile phones have NFC application and make today’s life smarter and easier. We can use NFC function to payment, identify, date exchange, information share. NFC sticker can affix on phone backside or anywhere if you want. Customer can rewrite URL, text, number into NFC sticker which embedded NFC chip inside. Generally they are 13.56mhz and ISO 14443A protocol. We can chose them depend on their user memory.
