Printable RFID Tag On Car Windshield For Vehicle Access Control

Printable RFID Tag On Car Windshield

RFID Windshield Tag For Car Access Control

  • Model: CXJ-RWT001
  • Material: Coated paper/PVC/PET
  • Frequency: Global 860-960MHz
  • Chip: Alien Higgs 3
  • Size: Minimum 23 x 97 mm or customized as your size request.
  • Support: EPC Global Class1 Gen2 & ISO 18000-6C
  • EPC Memory: 96 bits, read & write
  • User Memory: 512 bits,read & write
  • MOQ: 1000pcs
  • Sample: Free samples for function testing.

Get A Quote Now! or Skype: live:cxjrfid

Description

Description

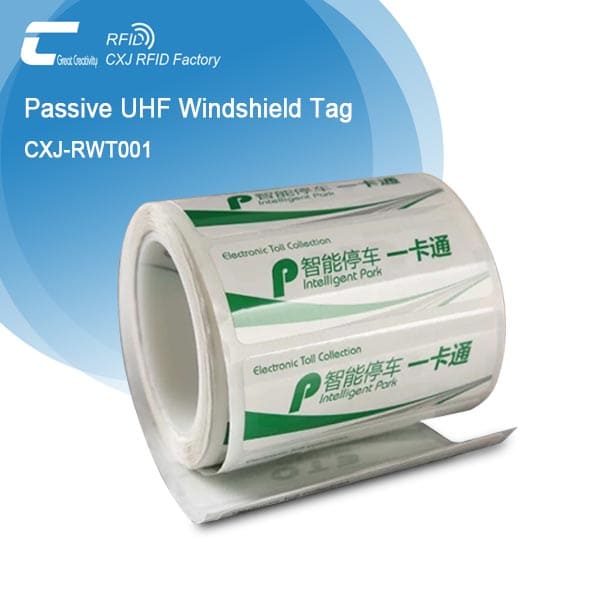

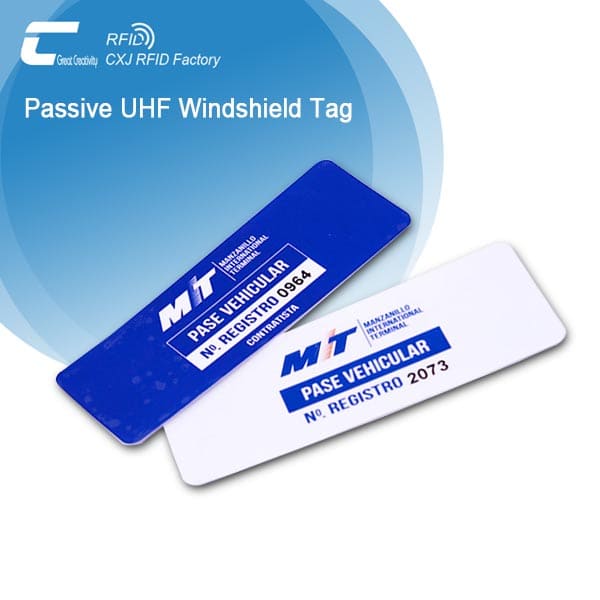

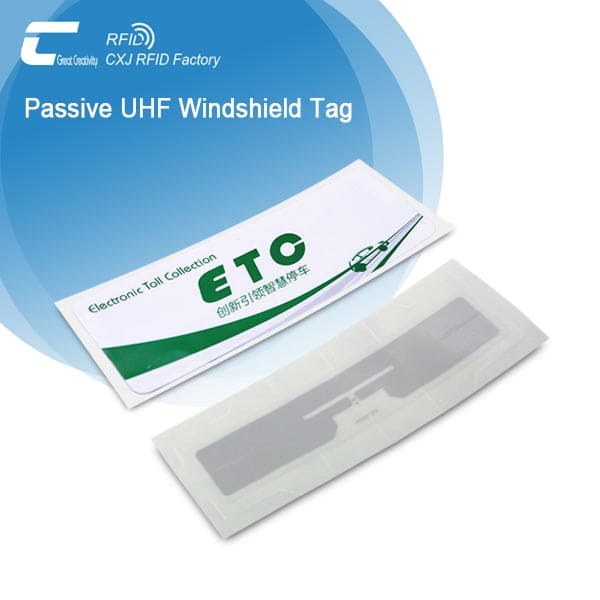

Custom UHF RFID Tag On Car Windshield

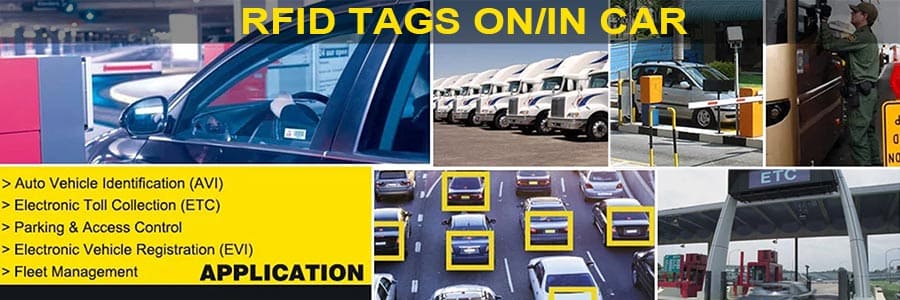

CXJ RFID tag on car windshield is specially designed for fast and reliable vehicle identification. The passive uhf windshield tag is optimized to work on car windshield glass and suitable for a wide selection of automatic vehicle identification applications such as access control, parking permit, road toll collection or insurance information verification.

Custom Printable RFID Tag On Car Windshield

The Alien H3 9654 RFID tag on car windshield is ultra-high-performance, especially well-suited for high-dielectric materials such as windshields and reusable plastic pallets or containers. ISO18000-6C standard and it fits for all 860-960mhz car UHF RFID readers and antennas. RFID technology is powerful tools that enable increased production times, improved inventory accuracy, error reduction, better routing information and other key operating efficiencies.

RFID Windshield Tag Feature

  • World Tag compliant, enabling consistent operation across the diverse frequencies.
  • Delivers industry leading EPC Gen 2 performance and reliability.
  • Custom Commands for high speed programming; 30 tags per second for the 96-bit EPC number.
  • Low power operation for both read and program.
  • Non-transferable and cannot be removed without being destroyed.

Specification

Product name Custom 860-960MHz Windshield RFID Label For Car Access Control
Support EPC Global Class1 Gen2 & ISO 18000-6C
Frequency Global 860-960MHz
Operating Mode Passive
Chip Alien Higgs 3
TID area 32 bits, read only
EPC area 96 bits, read & write
User area 512 bits, read & write
Password area 32 bits, read & write
Size Minimum 23 x 97 mm or customized as your size request.
Material Coated paper/PVC/PET
Printing Custom logo, number, bar code,QR code printed as your requests.
MOQ 1000pcs
Custom options Adhesive,package,program,fragile one time use etc.
Packaging Pack in roll, 2000/roll or as your request.
Reel core inner diameter 76 mm / 3’’
Sample Free samples for function testing

Application

  • Windshield glass
  • Reusable plastic pallets
  • Totes and containers
  • Asset management
  • High speed motocross & triathlon tagging

FAQ

Q: Do these labels have unique ID each label?
A: Yes,it has global unique ID number of each label,we called TID.

Q: Any similar items with same function?
A: Yes, dry inlay(without surface material & adhesive), wet inlay(with adhesive but without surface material), if you need both printing and adhesive, please choose UHF RFID label .

Q: Can we write a serial number in chip by writer?
A: Yes,you could write by yourself, or provide the data sheet,we could program/encode according to it.

Q: Can you provide hardware and software?
A: We can provide reader/writer and antenna,if you want to develop your own software, we will send the SDK file to you and you could find a local software company to help.

Q: What’s the payment term?
A: We can accept for T/T,Paypal, Western Union, Visa credit card. Full prepaid for small orders and 50% deposit and balance 50% before shipping for big order.

Q: What’s the delivery way?
A: We have VIP accounts in Fedex, DHL and UPS, we can get a low discount from them. Or you could also choose ship by sea / air.
