Bluetooth UHF RFID Reader Android Handheld Reader 1D/2D Scanner
Built-in Antenna Handhold Reader (Android)
- Model No.: CXJ-RRW007
- Operation System: Android 5.1 system, quad-core high-speed processor
- Memory: RAM: 2GB, ROM:16GB
- Display: 5-inch IPS HD screen, resolution 720 × 1280
- Working frequency: UHF, HF, LF
- Size: 170mm×85mm×23mm/ 6.69×3.35×0.91in
- Data Communication: 3G, 4G, WIFI, Bluetooth4.0
- Communication Interface: USB2.0 interface, 3.5 plug charging interface
Description
Handheld Bluetooth UHF RFID Reader Android
The Handheld Bluetooth UHF RFID Reader Android supports Android operating system, optional low frequency, high-frequency, ultra-high frequency RFID function. According to ergonomic design, built-in antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.
Features
- Compact and portable, physical and virtual keyboards and flexible configuration.
- Android 5.1 system, quad-core high-speed processor.
- RFID frequency optional.
- Diversified wireless communication.
- Powerful bar code scanning function optional.
 |
 |
 |

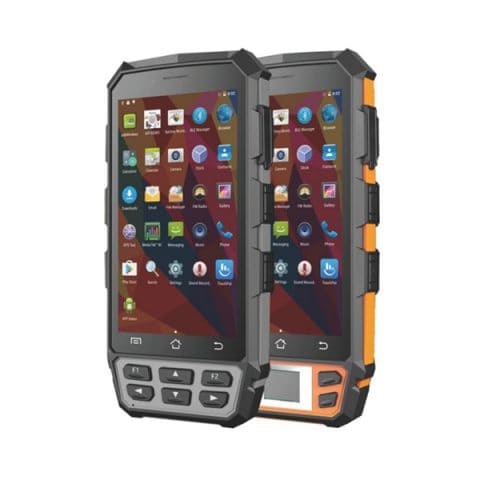

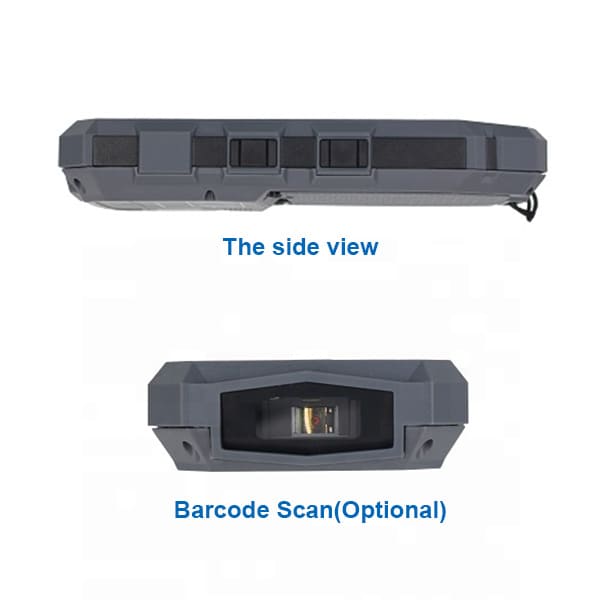

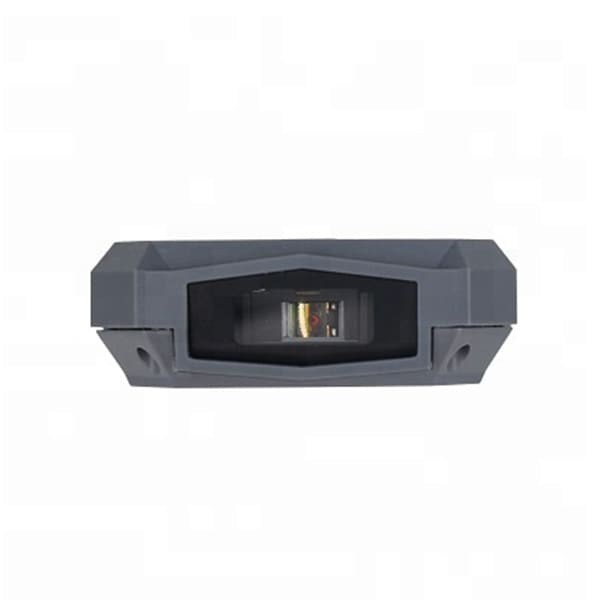

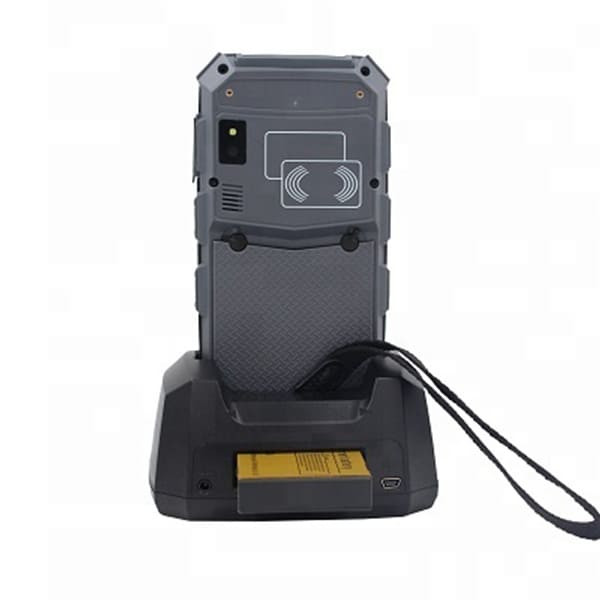

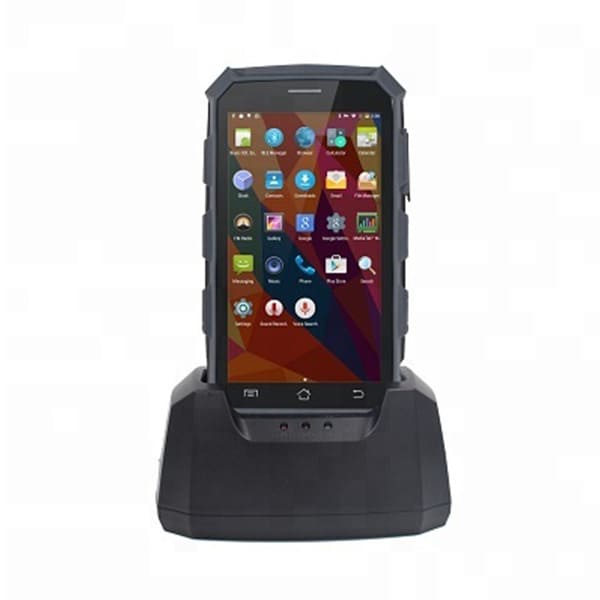

| Two types (Optional) | Charging Base (Optional) | Barcode Scan(Optional) |
Bluetooth UHF RFID Reader Android Application
- Container management, warehouse inventory management, cargo transfer tracking and so on.
- Production automation, parts and components management.
- Ticket and staff card identification.
- Patrol, asset management etc.
Technical Parameter
| Basic Parameters | |
| Size | 170mm×85mm×23mm/ 6.69×3.35×0.91in |
| Weight | About 380g |
| Display | 5-inch IPS HD screen, resolution 720 × 1280 |
| Touch Screen | Industrial multi-touch capacitive screen |
| Expansion slot | 1SIM, 2 PSAM |
| 1 MicroSD(TF) | |
| Communication Interface | USB2.0 interface, 3.5 plug charging interface |
| Audio | Voice broadcast |
| Indicator light | Network indicator, charging indicator |
| Key | Scan key, function key |
| Camera (Optional) | 8-megapixel rear camera with flash and autofocus function |
| Flashlight | Low power LED lighting, used in emergency |
| GPS | Built-in GPS global positioning system, range error ± 5m |
| Performance Parameters | |
| CPU | Quad-core 64-bit Cortex-A53 |
| Memory | RAM: 2GB, ROM:16GB |
| System | Android 5.1.1 |
| Extended memory | Supports up to 32G MicroSD card |
| Data Communication | |
| 4G | TDD-LTE Band 38/39/40 |
| FDD-LTE Band 1, 2, 3, 4, 7 | |
| 3G | WCDMA(850/1900/2100MHz) |
| WIFI | 2.4G/5G. comply with IEEE 802.11a/b/g/n |
| Bluetooth | Bluetooth4.0 |
| Working Environment | |
| Operating temp. | -20 to 50℃ / -4℉ to 122℉ |
| Storage temp. | -20 to 70℃/ -4℉ to 158℉ |
| Degree of Protection | IP65 |
| Battery Performance | |
| Battery capacity | Li-polm,4500mAh |
| Stand-by time | 320 hours when turn off the wireless communication and other functions |
| Operating hours | 12 hours or more (full charge) |
| Charging time | ＜4.5hours |
| Barcode Scanning (Optional) | |
| 1D Barcode | Scanning module: Honeywell N431X/ others
Code 39, Code 93, Code128, Codebar, EAN-13, EAN- 8, UPC- A, UPC- E, ITF14, UCC/EAN- 128, ITF25, Matrix 25, EAN- 128, ISBNetc |
| 2D Barcode | Scanning module: Honeywell-6603/NLS-EM3396/NLS-EM3296
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc |
| RFID (Optional) | |
| UHF | ETSI：865～868MHz OR FCC: 902～928MHz |
| Working protocol: ISO18000-6C | |
| Reading Distance: 2m (Ranges depend on tags and environment) | |
| HF | Working frequency: 13.56MHz |
| Working protocol: ISO14443A&ISO15693 | |
| Reading distance: 0～7cm(Ranges depend on tags and environment) | |
| LF | 125kHz/134.2kHz |
| PSAM | 2PSAM |
| HF (CPU CARD) | Read&Write, work only with PSAM |
| Active 2.45G (Custom) | Reading distance: 200m, 200pcs/time reading |
| Other Optional Modules | |
| 433MHz(Custom) | Reading distance＞200m, reading distance could be customized |
| ZIGBEE (Custom) | Applicable wireless network data acquisition |
| Infrared (Custom) | |
| Biological Identification (Optional) | |
| Module function | Enrollment, compare and deletion etc |
| Sensor | TCS1Biological fingerprints /FBI certificated |
| Sensor Type | Inductive capacitance |
| Image Size | 256×360 pixel |
| Resolution | 500DPI |
| Storage Memory | 1000 fingerprints |
| Accessory | |
| Standard | Li-polm battery, charging head, DC cable, USB cable |
| Optional | Recharging cradle |
| Support | |
| Documents | Demo, API, software development guidance |
