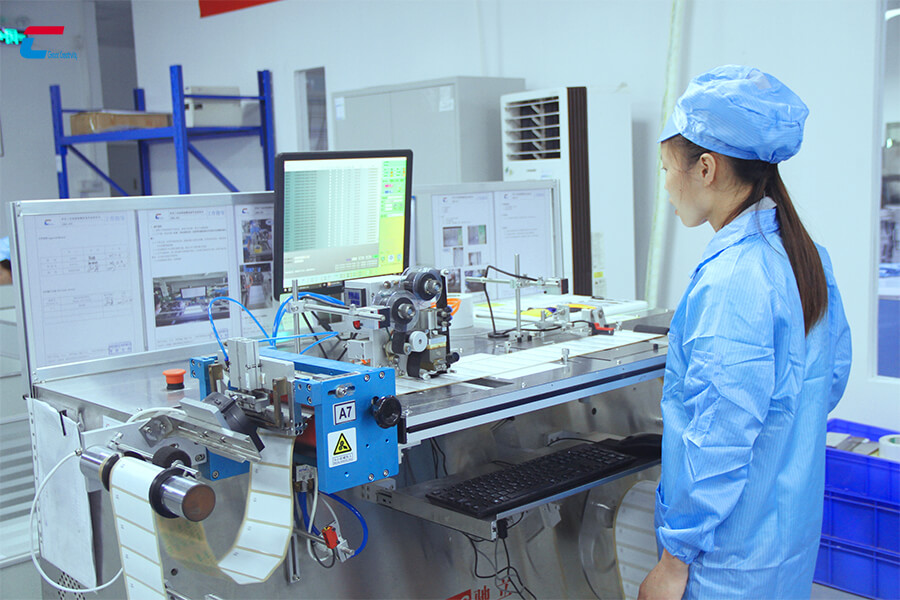

Label detection machine (Sticker RFlD Encode & Verify machine)
Labeldetection machine (Sticker RFlD Encode & Verify machine)
- Detecting speed: Max.600pcs/Min
- Encoding Speed: Max.360pcs/Min
- Laminate accuracy: ±0.5mm
- Label Width:20mm-180mm
- Labelinner Diameter: φ76mm
- Label outer Diameter: Max 400mm
- Function: Roll Label high speed detection&encoding
- Machine Size:1500x800X1500mm
- Power:220v50hz 1kw
- Weight: 260kg
Description
Labeldetection machine (Sticker RFlD Encode & Verify machine)
This product recommended by RSID provides a solution for the detecting and reading and encoding of reel-to-reel RFID label. In the meantime, it is also suitable for the quality detection in the production of inlay.
FEATURES
• This equipment is suitable for reel-to-reel RFID label detecting and encoding
• With a high-speed servo drive system, RFD label to achieve rapid feeding and recycling
• With tensioning roller structure
• Optional with Double station RFID encoding and detection to ensure accuracy
• Optional barcode scanner to realize the encoding printing with EPC data accordingly
• Optional ink jet printing mark on product
• Optional barcode printing equipment to realize the one-time completion of printing, scanning, encoding and detecting
• Provide API interface control code (Optional)
• Reader Quantity: UHF, HF (Optional)
• PC: One set industry PC included.
| Parameter | Specification |
|---|---|
| Detecting Speed | Max. 600 pcs/Min |
| Encoding Speed | Max. 360 pcs/Min |
| Laminate Accuracy | ±0.5 mm |
| Label Width | 20 mm – 180 mm |
| Label Inner Diameter | φ76 mm |
| Label Outer Diameter | Max φ400 mm |
| Function | Roll Label High Speed Detection & Encoding |
| Machine Size (L×W×H) | 1500 × 800 × 1500 mm |
| Power | 220 V 50 Hz 1 kW |
| Weight | 260 kg |
| Main Features | 1.This equipment is suitable for roll Sticker RFlD label encoding and quality detecting. 2.With CLS high speed servo system to realize high speed detection. 3.Optional with double station RFlD encoding and detection to ensure accuracy.4.0ptional barcode scanner to realize the encoding printing with EPC data accordingly 5.0ptional ink jet printing mark on product. 6.User can develop RFlD detection software to realize detecting and encoding |
