UHF Handheld RFID Reader Android 5.1 for Logistics Tracking
Handheld UHF RFID Reader (Android)
- Model No.: CXJ-RRW004
- Operation System: Android 5.1.1
- Memory: RAM 2GB, ROM 16GB
- Display: 5-inch IPS HD screen, resolution 720×1280
- Working frequency: UHF, HF, LF
- Size: 170mm×85mm×23mm / 6.69×3.35×0.91in
- Data Communication: 3G, 4G, WIFI, Bluetooth4.0
Description
Description
860-960Mhz Handheld RFID Reader Android 5.1

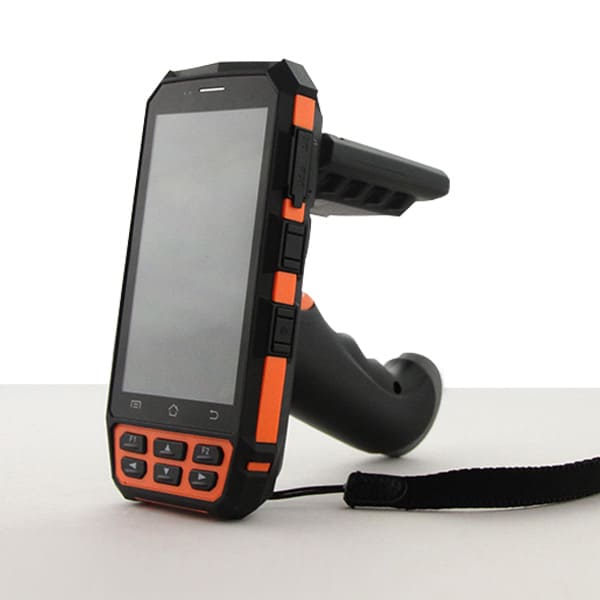

Handheld RFID Reader Android 5.1 CXJ-RRW004 is a fully rugged, highly capable, handheld RFID reader which offers best-in-class read range and super long battery life and is the best fully integrated all-in-one handheld terminal to deliver the ability to read automatic equipment identification (AEI) RFID tags to the palm of the hand.
Handheld RFID Reader Android 5.1 CXJ-RRW004 support Android operating system, optional low frequency, high-frequency, ultra-high frequency RFID function. According to ergonomic design, external antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.
Features
- Compact and portable, physical and virtual keyboards and flexible configuration.
- Android 5.1 system, quad-core high-speed processor.
- RFID frequency optional.
- Diversified wireless communication.
- Powerful bar code scanning function optional.
- High speed data communication
Double insurance of 4G high speed network and dual-frequency WiFi network can ensure the real-time data communication in different using environment. - All-in-one integrated battery design

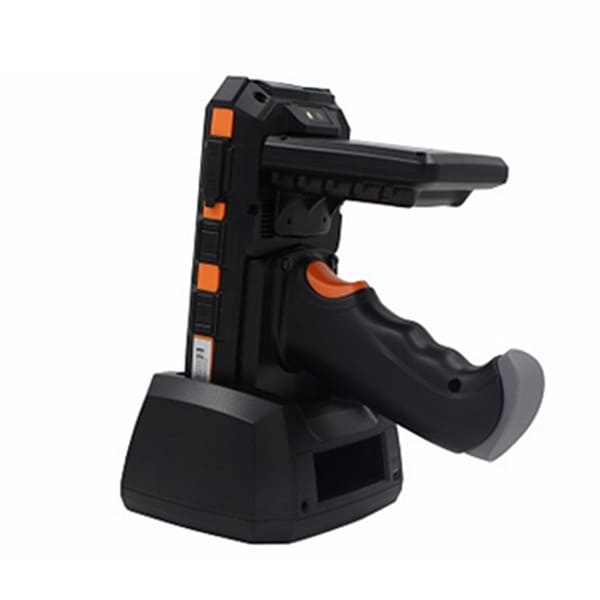

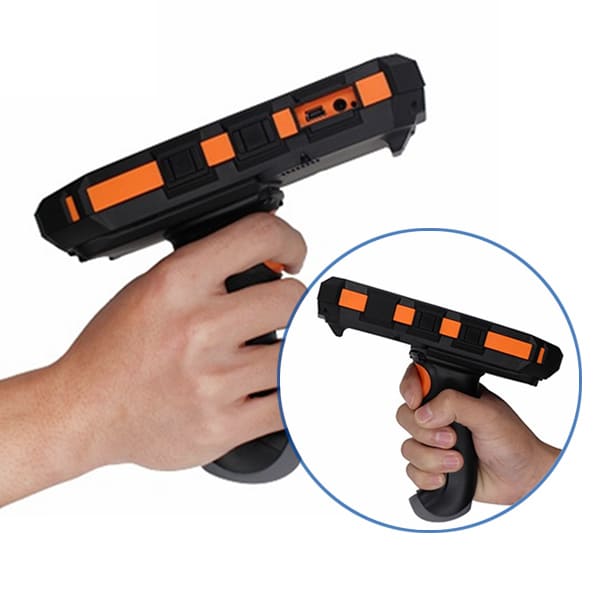

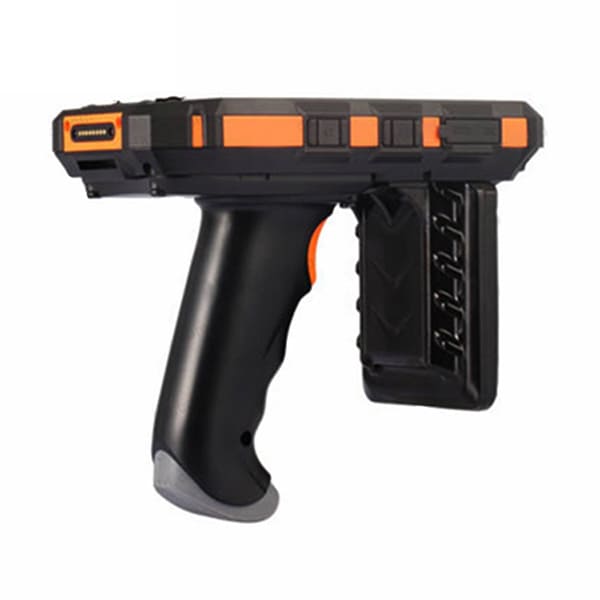

Mounted pistol grip with built-in battery of 8000mAh can ensure the high efficiency in outdoors environments. - Portable charging cradle
Optional charging cradle is easy to carry, realize charging everywhere.
Application
- Container management, warehouse inventory management, cargo transfer tracking and so on.
- Production automation, parts and components management.
- Ticket and staff card identification.
- Patrol, asset management etc.
Technical Parameter
| Basic Parameters | |
| Size | 170mm×85mm×23mm / 6.69×3.35×0.91in |
| Weight | About 400g |
| Display | 5-inch IPS HD screen, resolution 720×1280 |
| Touch Screen | Industrial multi-touch capacitive screen |
| Expansion slot | 1SIM, 2PSAM |
| 1MicroSD(TF) | |
| Communication Interface | USB2.0, 3.5 plug charging interface |
| Audio | Voice broadcast |
| Indicator light | Network indicator, charging indicator |
| Key | Scan key, function key |
| Camera (Optional) | 8-megapixel rear camera with flash and autofocus function |
| Flashlight | Low power LED lighting, used in emergency |
| GPS | Built-in GPS global positioning system, range error ± 5m |
| Performance Parameters | |
| CPU | Quad-core 64-bit Cortex-A53 |
| Memory | RAM: 2GB, ROM: 16GB |
| Operating System | Android 5.1.1 |
| Expansion | Supports up to 32GMicroSD card |
| Data Communication | |
| 4G | TDD-LTE Band 38/39/40 |
| FDD-LTE Band 1, 2, 3, 4, 7 | |
| 3G | WCDMA(850/1900/2100MHz) |
| WIFI | 2.4G/5G, comply with IEEE 802.11a/b/g/n |
| Bluetooth | Bluetooth4.0 |
| Working Environment | |
| Operating temp. | -20 to 50℃ / -4℉ to 122℉ |
| Storage temp. | -20 to 70℃/ -4℉ to 158℉ |
| Degree of Protection | IP65 |
| Battery Performance | |
| Battery capacity | Li-polm,8000mAh |
| Stand-by time | 360 hours when turn off the wireless communication and other functions |
| Operating hours | 10 hours or more (full charge) |
| Charging time | ＜4.5hours |
| Barcode Scanning (Optional) | |
| 1D Barcode | Code 39, Code 93, Code128, Codebar, EAN-13, EAN- 8, UPC- A, UPC- E, ITF14, UCC/EAN- 128, ITF25, Matrix 25, EAN- 128, ISBNetc |
| 2D Barcode | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc |
| RFID (Optional) | |
| UHF | ETSI：865～868MHz OR FCC：902～928MHz |
| Working protocol: ISO18000-6C | |
| Reading distance: 0～7m(Ranges depend on tags and environment) | |
| Anti-collision (optional): 200pcs/s | |
| Output power: 0～30dBm/2W | |
| HF | Working frequency: 13.56MHz |
| Working protocol: ISO14443A&ISO15693 | |
| Reading distance: 0～7cm(Ranges depend on tags and environment) | |
| LF | 125kHz/134.2kHz |
| PSAM | 2PSAM |
| HF(CPU CARD) | Read & Write, work only with PSAM |
| Active 2.45G (Custom) | Reading distance: 200m, 200pcs/time reading |
| Other Optional Modules | |
| 433M (Custom) | Reading distance＞200m, reading distance could be customized |
| ZIGBEE (Custom) | Applicable wireless network data acquisition |
| Infrared (Custom) | |
| Biometric Identification (Optional) | |
| Functions | Enrollment, compare and deletionetc |
| Sensor | TCS1 Biological fingerprints /FBI certificated |
| Sensor Type | Inductive capacitance |
| Image Size | 256×360 pixel |
| Resolution | 500DPI |
| Storage Memory | 1000 fingerprints |
| Accessory | |
| Standard | Li-polm battery, charging head, DC cable, USB cable |
| Optional | Recharging cradle |
| Support | |
| Document | Demo, API, software development guidance |
