Passive HF 13.56 Mhz RFID Nail Tag Tree Tag For Wood Management

HF 13.56 Mhz RFID Nail Tag

Model No.: CXJ-RNT001
Company Brand: CXJ
Material: ABS
RFID Chip: LF, HF,UHF
Size: In stock size or customized size
LOGO Printing: silk screen printing, embossed ,debossed ,laser etc

Description

Product Description

1. Description HF 13.56 Mhz RFID nail tag:

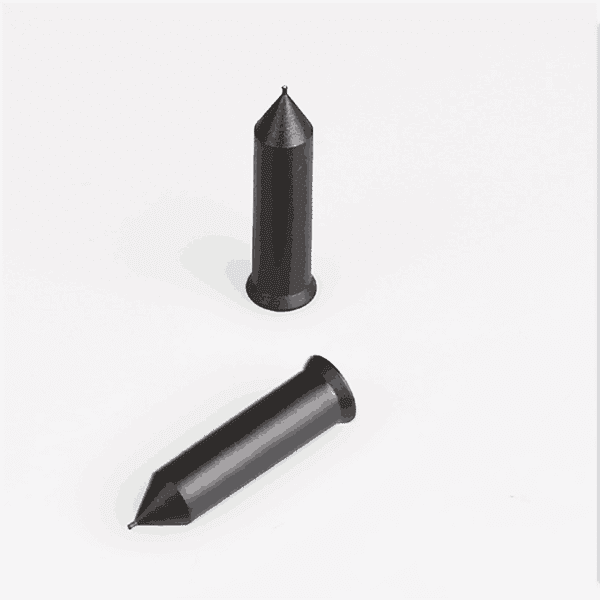

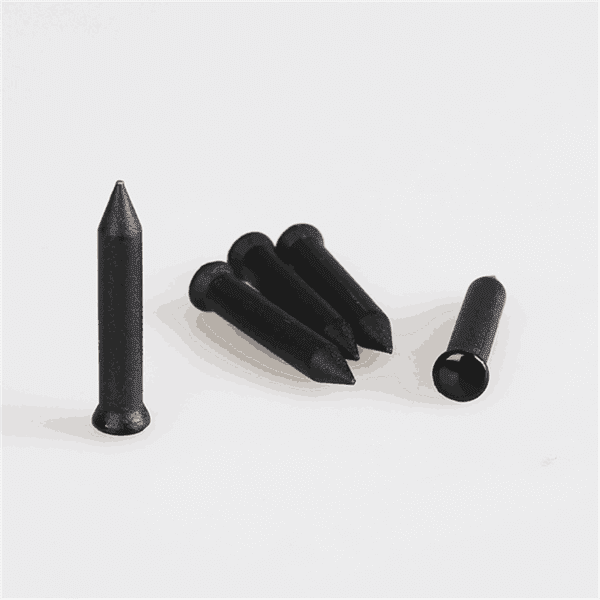

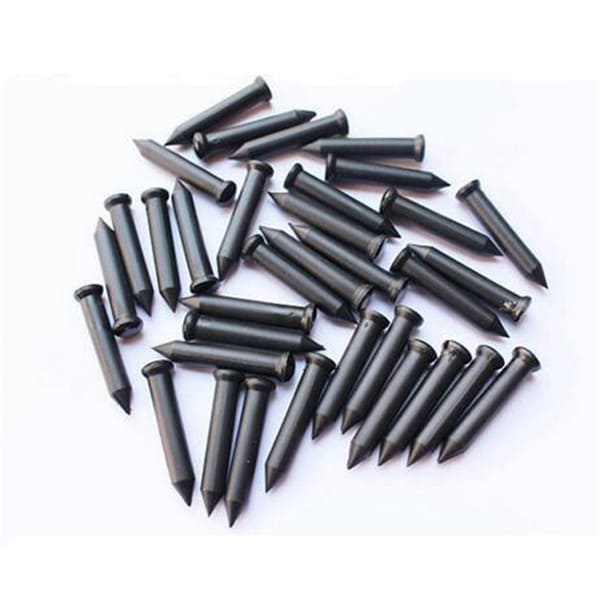

HF 13.56 Mhz RFID nail tag

Specially designed for non-metallic materials like wood, cement and plastic, our nail tag can be inserted into trees, pallets and   other items for identification and tracking purposes.



2. Applications:

Tree and wood tracking and identification



3. Specifications:

Product Name

RFID Tree tag, HF 13.56 Mhz RFID nail tag,  RFID nail tag.

Material

ABS material

Size

Size Can be Customized

Frequency

LF :125Khz, HF:13.56Mhz,UHF : 860-960Mhz

Protocol

ISO7814,ISO14443A,ISO18000-6C,

Reading Distance

3-10cm For LF /HF . 3-5m for UHF .

Crafts

Logo printing : Digit printing, offset printing and silk printing
Number printed will be available (Serial No & Chip UID)
Chip program/encode will be available as well ( URL ,TEXT ,Number and Vcard)
Epoxy, Customize size and shape, Hole punch etc

Available RFID Chip

Protocol ISO/IEC 14443A:



1: MIFARE Classic® 1K  MIFARE Classic® EV1 1K  MIFARE Classic® 4K

MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license.



2: MIFARE Plus®  MIFARE Plus® EV1  MIFARE Plus® SE 1K

MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.



3: MIFARE® DESFire® EV1  MIFARE® DESFire® EV2

MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.



4: NFC Forum Type 2:

1) NTAG® 203 (144 bytes)  NTAG 213  (144 bytes)  NTAG® 215 (504 bytes) NTAG® 216(888 bytes)

NTAG® are registered trademarks of NXP B.V. and are used under license.



2) MIFARE Ultralight® (48 bytes) MIFARE Ultralight® EV1 (48 bytes) MIFARE Ultralight® C(148 bytes)

MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.



Protocol ISO 15693/ISO 18000-3:

ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2

ICODE® are registered trademarks of NXP B.V. and are used under license.



Protocol ISO7814: EM4200,TK4100,EM4305,etc.

Protocol ISO18000-6C: Alien H3 ,H4 Impinj M4,,etc.



Package

Package: 100 pcs/Bag, 10 Bags/Carton

Shipping

By express, sea or air

Payment term

T/T, Paypal, Western Union, L/C, RMB

MOQ

500pcs

Free Sample

Available at any time
