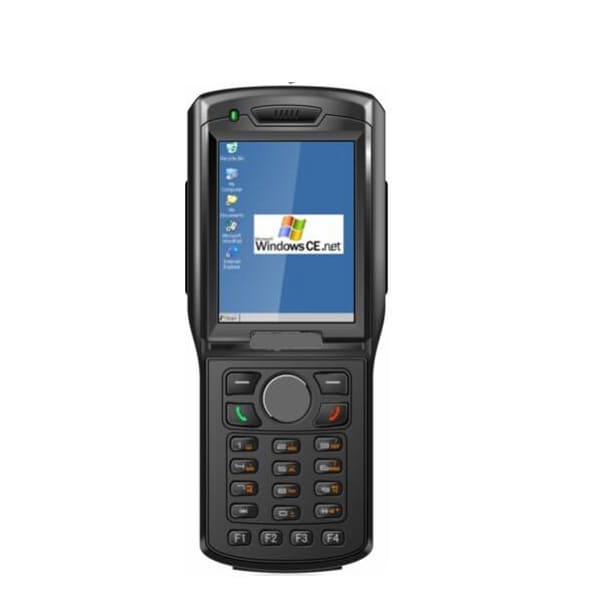

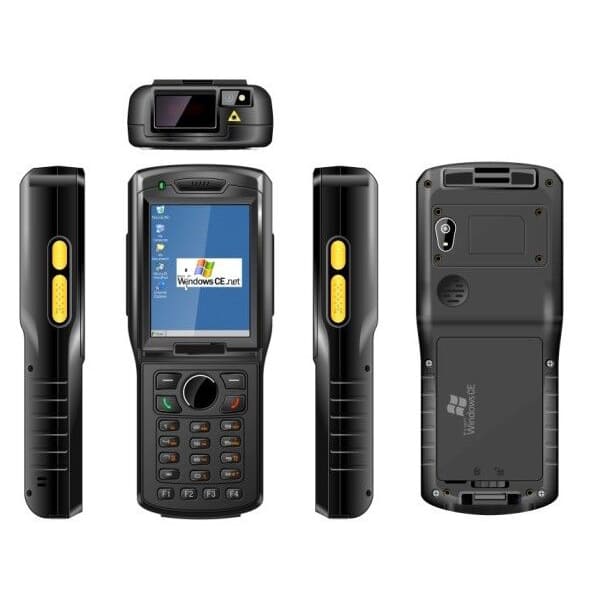

Wireless Handheld RFID Tag Reader WinCE 6.0 System for Logistics

handheld rfid tag reader

Handheld UHF Reader (WinCE)

  • Model No.: CXJ-RRW006
  • Operation System: WinCE 6.0 system
  • Memory: 512MB Mobile DDR2、512MBNand FLASH
  • Touch screen: Industrial multi-touch capacitive screen
  • Display: 4-inch TFT LCD screen
  • Working protocol: ISO18000-6C
  • Working frequency: UHF
  • Dimension: 190mm×84mm×42mm (Body size)
  • Data Communication: 3G, WIFI, Bluetooth2.1

Contact Us Now!

Description

Description

External Antenna Handheld RFID Tag Reader Specification(WinCE)

Wireless Handheld RFID Tag Reader support WinCE 6.0 operating system, optional low frequency, high-frequency, ultra-high frequency RFID function. According to ergonomic design, built-in antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.

Wireless Handheld RFID Tag Reader WinCE System for Logistics

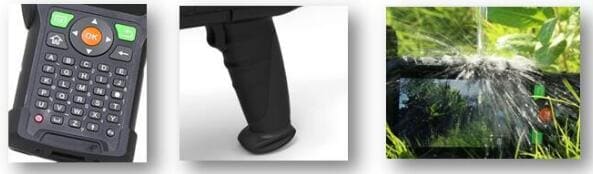

Features

  • Compact and portable, physical and virtual keyboards and flexible configuration.
  • WinCE 6.0 system.
  • RFID frequency optional.
  • Diversified wireless communication.
  • Powerful bar code scanning function optional.
  • Standard WIFI, BT, expansion interface, providing a perfect interface.

Application

  • Container management, warehouse inventory management, cargo transfer tracking and so on.
  • Production automation, parts and components management.
  • Ticket and staff card identification.
  • Patrol, asset management etc.

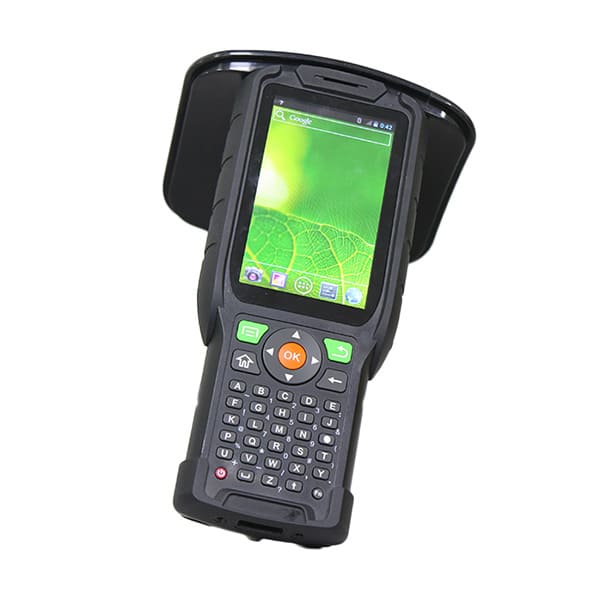

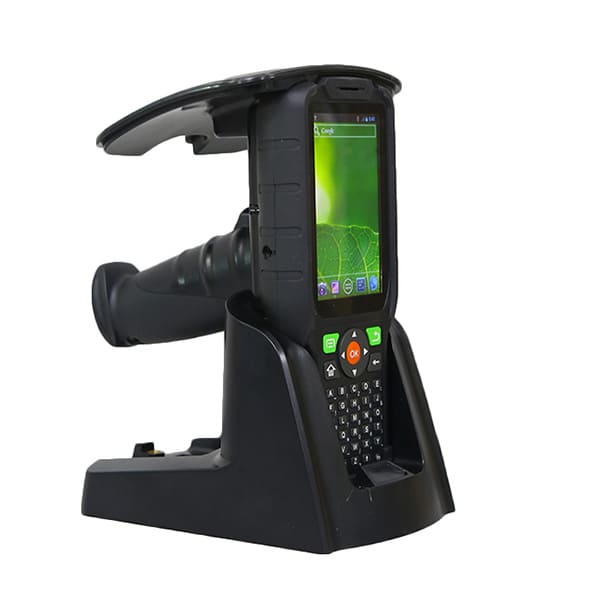

External Antenna Handhold Reader

Technical Parameter

Basic Parameters
Size 190mm×84mm×42mm (Body size)

220mm×130mm×163mm (Full size, antenna & pistol included)

Weight About 700g
Display 4-inch TFT LCD screen
Touch Screen Industrial multi-touch capacitive screen
Expansion slot 1SIM
Supports up to 32GMicroSD card
Communication interface USB2.0
Audio Voice broadcast
Indicator light Network indicator, charging indicator
Key Numeric keypad, Scan key, function key
Camera (optional) 5-megapixel rear camera with flash and autofocus function
Flashlight Low power LED lighting, used in emergency
GPS Built-in GPS global positioning system, range error ± 5m
Performance Parameters
CPU TI AM37151GHz
Memory 512MB Mobile DDR2、512MBNand FLASH
Operating System WINCE 6.0
Expansion Supports up to 32GMicroSD card
Data Communication
3G (Optional) WCDMA(850/1900/2100MHz)
WIFI (Optional) 2.4G/5G, comply with IEEE 802.11a/b/g/n
Bluetooth Bluetooth 2.1
Working Environment
Operating temp. -20 to 50℃ / -4℉ to 122℉
Storage temp. -30 to 70℃ / -22℉ to 158℉
Degree of Protection IP66
Battery Performance
Battery capacity Main battery: Lithium, 3.7V4000mAh

Built-in battery: Lithium, 3.7V3300mAh

Power Consumption Working: <6W,

Stand-by: <0.01W

Operating hours 10 hours or more (full charge)
Charging time <4.5hours
Barcode Scanning (Optional)
1D Barcode Undecoded and decoded

Scan mode: single-line

Interface: Undecoded:10-pin ZIF connector,

Decoded:12-pin ZIP connector RS-232(TTL)

Scanning angle: 47±3° (default) /35±3° (BWR)

Scan rate: 104 scans / s ± 12 scans / s

Barcode 2D Barcode:

PDF417, QR Code(Model 1/2), DataMatrix(ECC200.ECC000,050080.100.140),Aztec,Maxiccdeetc

1D Barcode:

Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,

China post 25,interteaved 2 of 5,ISBN/ISSN. Code93etc

RFID
UHF ETSI:865868MHz OR FCC:902928MHz
Working protocol: ISO18000-6C
Reading distance: 07m(Ranges depend on tags and environment)
Accessory
Standard Lithium battery, charging head, DC5V adapter, USB cable

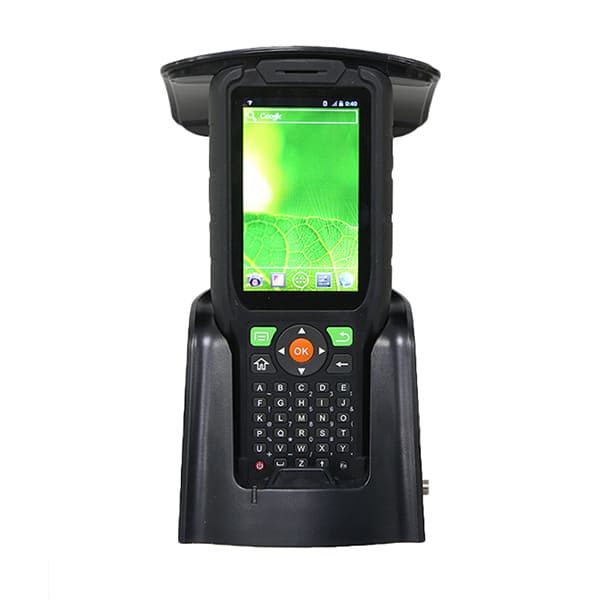

Optional Recharging cradle
Support
Document Demo, API, software development guidance
