RFID smart card reader:
Model No.: CXJ-RR-0010
Company Brand: CXJ
Operation System: Window CE 6.0
CPU: ARM11 533MHz
Memory: 256MB SDRAM, 256MB Flash
Touch screen: 3.5 inches TFT
SDK: C++,VC,C# second development kits
Working frequency: 902MHz~928MHz(customized)
Dimension: 170*80*30mm

SKU: CXJ-RR-0010 Category: Tag:
Description

Description

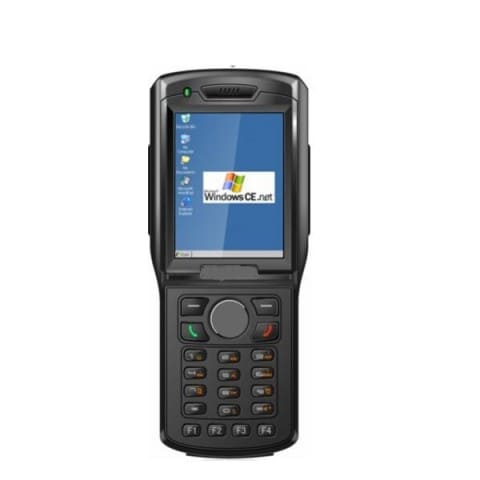

RFID Smart Card Reader Description:

RFID smart card reader is radio frequency identification, can automatic recognize the target and access to relevant RFID signal data without human intervention, besides it’s easy to operate, can identify fast moving objects and identifying a plurality of RFID tags. RFID reader/writer have fixed type and hand held type. The hand held type RFID smart card reader includes a low frequency, high frequency, UHF, active and so on. Generally, RFID smart card reader apply to yard management, it realize the identity of the vehicle identification, automatic deductions. If apply to long-range RFID smart card reader , can realize non-stop and avoid taking cards services or unattended channels.

RFID Smart Card Reader Features:
1 .Support LF , HF , UHF RFID ;
2.Support WiFi, Communicate with LAN by wireless network;
3. Outdoor user can keep in touch with Headquarters at any time by GPRS;
4. Integrated Long Range Laser Barcode Scanner;
5. Hand-write input, support signature capture function;
6. Industry IP54 Hardware design and can be used in Harsh environment;
7. Good Performance and Cost-effective.

Specification:

CPU ARM11 533MHz
OS Microsoft Windows CE 6.0
Memory 256MB SDRAM, 256MB Flash
Touch Screen 3.5 inches TFT touch screen, 240×320 pixels,
Keyboard 30 keys, including power, digital / English keys and function keys
Speaker Built-in speaker, high-definition output
Buzzer Yes
LED 2-colors LED, support power and GPRS indicator light
Battery 3.7V, 3100 mAh or 3.7V/5000mAh Rechargeable Lithium battery
2nd Development C++,VC,C#  second development kits
1D barcode laser or red-light engine that supports common 1D barcode :
support UPC-A,UPC-E, EAN-13,/JAN-13, EAN-8/JAN-8
CODE 39, CODE 128, CODABAR, CODE 93.
2D barcode Honeywell laser that supports common 2D barcode : QR code,
Aztec, data matrix,PDF417,etc.
LF  RFID(125/134.2 KHz) Support EM4001,TK4001.
HF RFID(13.56MHz) Support ISO14443A ISO 14443A/B,Mifare S50, S70, Desfire,
Mifare pro, ultralight,FM11RF08,desfire;
or ISO 15693, ISO18000-3, like icode II, icode II SLIX,tag-it,etc
UHF RFID Support:ISO18000-6C, EPC Class 0, EPC Class 1 (GEN2)
Frequency: 860 MHz~960 MHz
Distance: 0~3m ( with U1 module)
0~7m (with U7 module)
Active RFID
(2.4GHz)
Distance: 30-100 m , refer to scanning type
GPS Position: 20 channels maximum, Position accuracy:
10m, speed accuracy: 0.1m/s,
updated rate: 1s. Support A-GPS.
suppor
Wireless Communication
WiFi IEEE 802.11 b/g
Bluetooth Bluetooth Class II V1.2
3G (optional) WCDMA/EVDO/HSDPA( 850/2100MHz)
GPRS (optional) GSM/GPRS/EDGE ( 900/1800/1900MHz)
CDMA(optional) CDMA2000 1X RTT (CDMA 800/ 1900 MHz)
Expansion Interface
USB Interface Mini USB interface, support USB 2.0
SIM/UIM card slot 1 SIM/UIM card slot (supports GPRS/ CDMA)
SD card slot 1 micro SD card slot (supports up to 2GB)
PSAM card slot 2PSAM card slot
Handle (optional) Handle with barcode scanning trigger
Physical
Outward industrial design, support one-handed operation
Size (W x H x D) 170 * 80 * 30 mm
Weight  with battery: 320g
Environment
Working Temperature -15 ℃ ~ 55 ℃
Storage temperature -40 ℃ ~ 65 ℃
Humidity 5% RH ~ 95% RH (no condensation)
Accessories
Charger  Input: 100~240VAC , 47-63hz , Output: 9V/1A, with a charge indicator
USB cable 12 pin communication interface , provide USB interface
Touch pen Use for handwriting input
Wrist belt Wrist belt to fasten the terminal on your hand

FAQ:
Q1: Are you a manufacturer or trading company?
A1: Shenzhen Chuangxinjia Smart Card Co.,ltd is the professional manufacture over 15 years and has soloved the Samsung NFC payment, British Telecoming Card, Iranian Transportation Bus Smart Card, etc.
Q2: What about the shipping methods?
A2: For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT,DHL, EMS.
For heavy weight, you can choose to deliver the goods by air or by sea to save cost.
Q3: What about the payment methods?
A3: We accept T/T, L/C for big amount, and for small amount, you can pay us by Paypal, Western Union.
Q4: What’s your delivery time?
A4: Usually we produce within 8 days after receiving the payment, and shipping time for express is about 2-5days depends on destination.
Q5: Can I print our logo/ barcode/ unique QR code/ series number on your cards?
A5: Yes, of course. We do customized products.
Q6: Can I order some samples for our testing?
A6: Sure, we can arrange the sample to you by freight collect. For existing samples, one day and for free, and for samples with your logo, 3 days and need sample cost, please understand.
Q7: What’s your MOQ(Minimum Order Quantity) of cards?
A7: Our MOQ is 500pcs.
Q8: Can you customize my RFID card in special shape?
A8: Yes, we do OEM and ODM, but for customized RFID card, we have a higher MOQ and you need to stand the mould cost, please understand!
Q9: Can I be your agent in my country?
A9: Yes, welcome to be our partner, please contact us if you have this intention.
Q10: How can you make sure we will receive the RFID card with high quality?
A10: Our QC team will inspect each batch of RFID card before delivery and all the raw material we used are eco-friendly, we have certificates of ISO9001-2008,SGS,ROHS,EN71.
