RFID Asset management waterproof PVC long range UHF H3 label
860-960MHz Long Rang RFID Asset Label
- Model No.: CXJ-RAT004
- Material: Coated paper/PVC/PET.

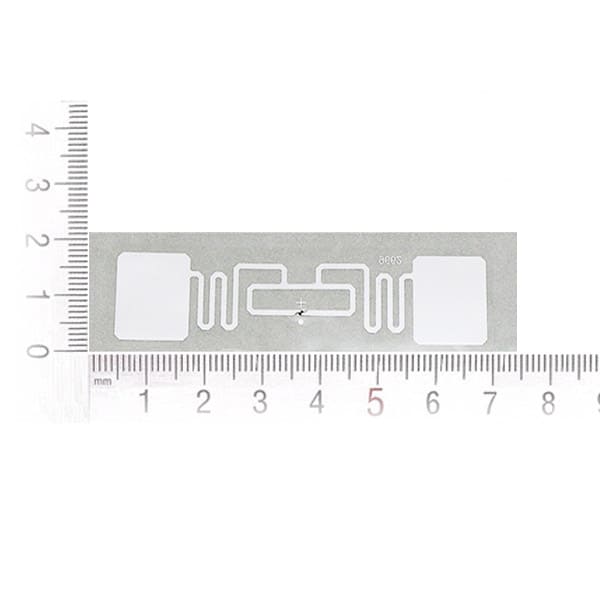

- Size: 21 x 74 mm or customized as your size request.
- Frenquency: Global 860-960MHz
- Chips: Alien Higgs 3
- Operating Mode: Passive
- Reel core inner diameter: 76mm / 3’’
- Support: EPC Global Class1 Gen2 & ISO 18000-6C

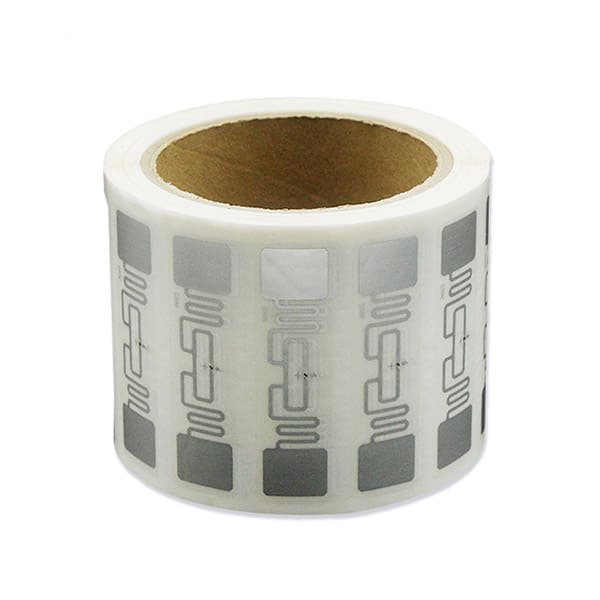

- Packaging: Pack in roll, 2000/roll or as your request.
- Custom options: Size, material, adhesive, package, program etc.
- MOQ: 1000PCS
Get Free Sample Now! or Contact at Skype: live:cxjrfid
Description
Description

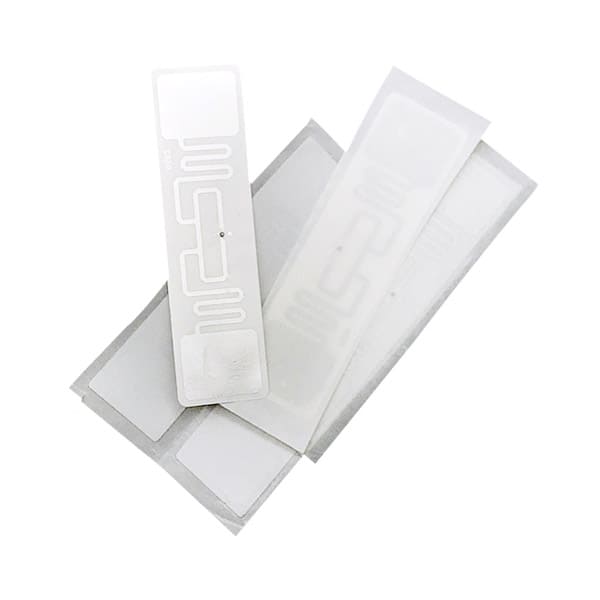

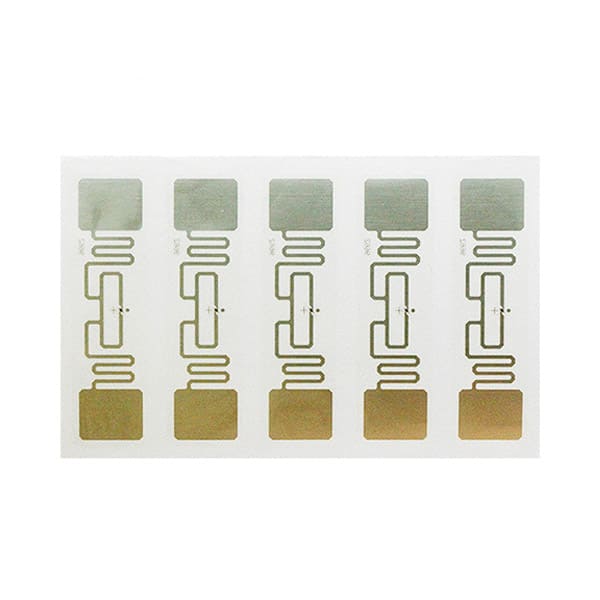

RFID Asset Management PVC UHF Label
The RFID Asset Management UHF label is designed in RFID technology with Alien H3 chip inside,it is complaint with EPC C1G2 (ISO18000-6C) standard and it fits for all 860-960 mhz UHF RFID readers and antennas. RFID technology is powerful tools that enable increased production times,improved inventory accuracy, error reduction, better routing information and other key operating efficiencies. RFID Asset Management UHF label provide a superior level of asset tracking,inventory management and supply chain management.
Asset UHF Label Feature
- Fast and easy access to objects
- High performance passive UHF rfid label
- Improve objects’ visibility
- RFID tracking in a wide range of environments
- RFID Asset Management Labels with barcode and human-readable information for integration with other systems.
Specification
| Product name | RFID Asset management waterproof PVC long range H3 label |
| Support | EPC Global Class1 Gen2 & ISO 18000-6C |
| Frequency | Global 860-960MHz |
| Operating Mode | Passive |
| Chip | Alien Higgs 3 |
| TID area | 64 bits,read only |
| EPC area | 96 bits,read & write |
| User area | 512 bits,read & write |
| Password area | 32 bits,read & write |
| Size | 21 x 74 mm or customized as your size request. |
| Material | Coated paper/PVC/PET |
| Printing | Custom logo,number,barcode,QR code printed as your requests. |
| MOQ | 1000pcs |
| Custom options | Size,material,adhesive,package,program etc. |
| Packaging | Pack in roll, 2000/roll or as your request |
| Reel core inner diameter | 76mm / 3’’ |
| Sample | Free samples for function testing |

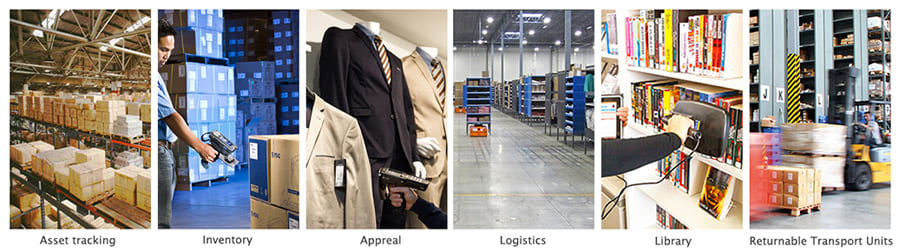

Asset UHF Applications
FAQ
- Q:Do these rfid asset management labels have unique ID each label?
A:Yes,it has global unique ID number of each label,we called TID. - Q:Any similar items with same function?
A:Yes, dry inlay(without surface material & adhesive), wet inlay(with adhesive but without surface material), if you need both printing and adhesive, please choose UHF RFID label . - Q:Can you provide hardware and software?
A: We can provide reader/writer and antenna,if you want to develop your own software, we will send the SDK file to you and you could find a local software company to help. - Q:What’s the delivery way?
A: We have VIP accounts in Fedex,DHL and UPS, we can get a low discount from them. Or you could also choose ship by sea/air. - Q:What’s the payment term?
A: We can accept for T/T,Paypal, Western Union, Visa credit card. Full prepaid for small orders and 50% deposit and balance 50% before shipping for big order.
