15m Access Control Long Range RFID Reader UHF Eight-Channel Reader

long range rfid reader

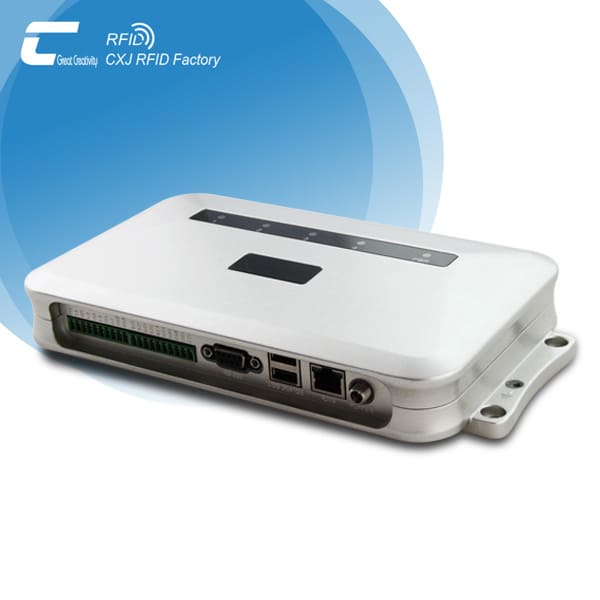

Long Range RFID Reader UHF Eight-Channel Reader

  • Model No.: CXJ-RRW012
  • Protocol: ISO18000-6B/6C
  • Frequency: FCC: 902~928MHz, ETSI:865~868MHz, GB: 920~925MHz
  • Size: 255mm×145mm×35mm
  • Read speed: >400 times/s
  • Antenna: Need external antenna
  • Work temperature: -20~+70°C
  • Storage temperature: -40~+85°C

Contact us Now! or Ms. Edith Chen | Skype: live:cxjrfid

Description

Description

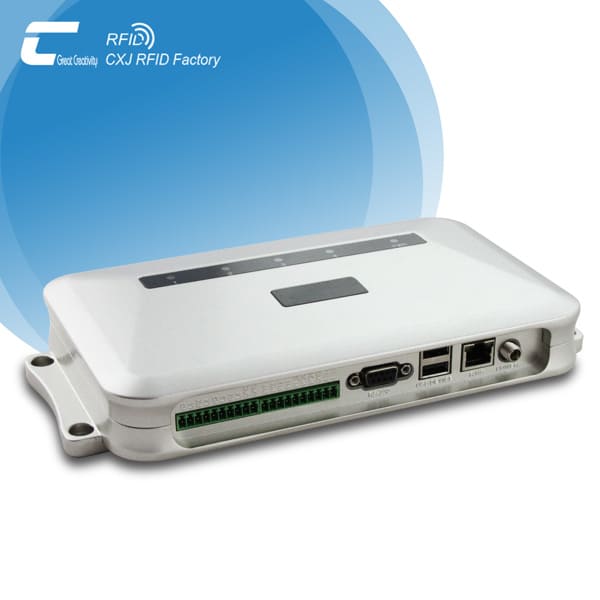

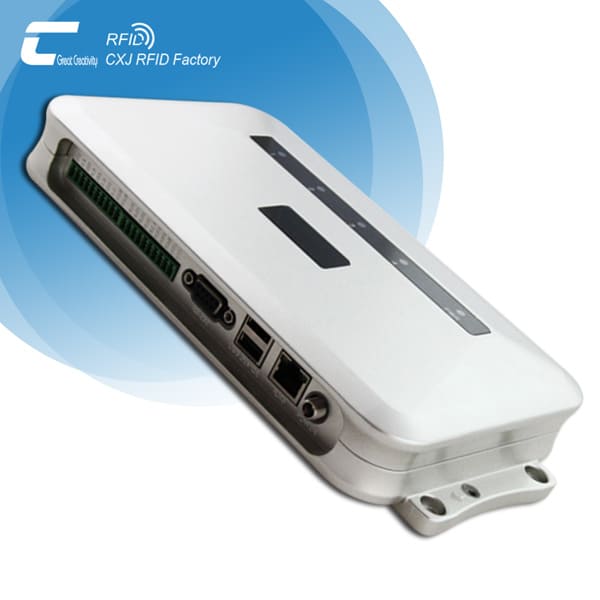

Long Range RFID Reader UHF Eight-Channel Reader

CXJ Long Range RFID Reader Eight-Channel Reader is a high-performance UHF RFID read & write device, support ISO 18000-6C/6B two kinds of protocol, working frequency: 920 MHz~925 MHz/840 MHz~845 MHz, FCC: 902 MHz~928 MHz , ETSI: 865 MHz~868 MHz, JP:916 MHz~920 MHz, output power support 0 dBm-33 dBm, long reading distance, high speed, multi-tag recognition capability, anti-interference ability, protective performance, easy to install and use.

Eight-Channel UHF Reader Feature

  • RF transceiver is Impinj R2000, bi-ampsynthetic circuits.
  • ARM 9 platform processor, dominant frequency 400  MHz.
  • Support ISO18000-6B/6Cprotocol.
  • Internal Linux 2.6 operating system, support customizable development.
  • Support RJ-45/RS-232/RS-485/USB 2.0/Wiegend interface and other multiple communication interfaces.
  • Independent model, die-casting full aluminium, efficient, heat dissipation.
  • Support RSSI and assess the signal strength.
  • Support antenna detection function.
  • With extendibility of bluetooth and WIFI wireless transmission.

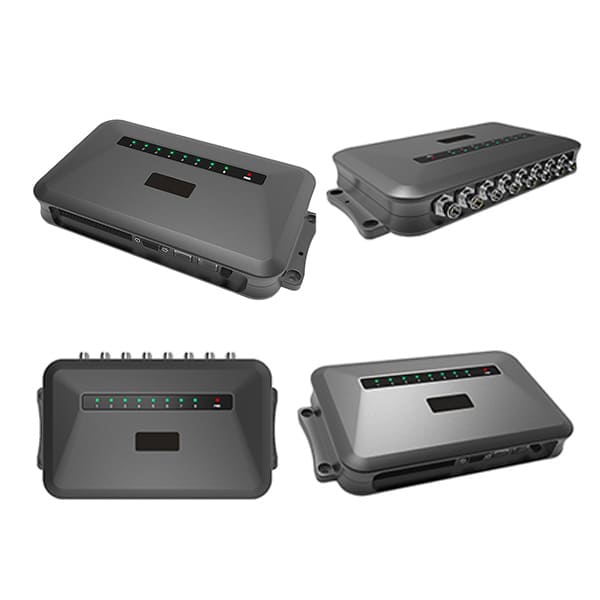

UHF Eight-Channel Reader

Long Range RFID Reader Application

  • Logistics industry such as container operation management, warehouse inventory management, goods tracking etc.
  • Intelligent vehicle management such as vehicle inspection, customs clearance, car pass inspection.
  • Anti-counterfeiting identification.
  • Production automation, parts process management etc.
  • Electronic ticket inspection and staff card inspection etc.
  • Power patrol, asset warehousing management etc.

Main Technical Characters

System
Operating system Linux 2.6
CPU ARM9, 400MHz
Storage DDR SDRAM: 128M, ROM: 256M
Physical parameter

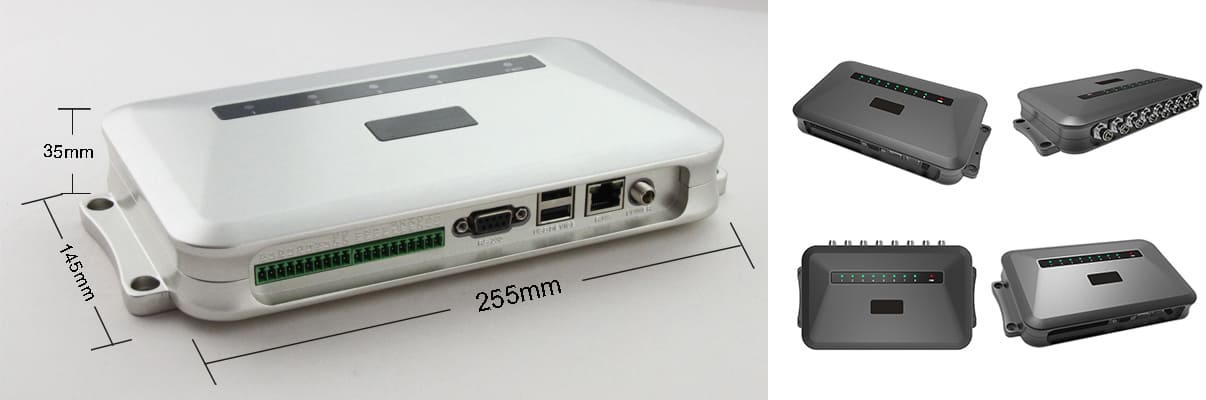

Size 255mm×145mm×35mm
Weight 1.4kg
Body material Alloy
Input Voltage DC 24V/2.5A
UHF RFID
Protocol ISO18000-6B/6C
Frequency FCC: 902~928MHz
ETSI: 865~868MHz
GB: 920~925MHz
Output power 0~33dBm(±1.5dBm)
Power regulation 1dB stepping
Frequency bandwidth <200kHz
Frequency stability ≤±10ppm
External interface RS-232, RS-485, Wiegand, RJ45, USB2.0
Work mode Fixed frequency or hopping mode
RJ-45 communication speed 10M/100MEthernet interface
Reading speed >400 times/s
I/O interface 4optoelectronic inputs /4 relay outputs
Anti-interference ability Good anti-interference algorithm,suppot reading multi-tag
Software Support RSSI, antenna detection, online update, data filteringfunction
Radio frequency interface 8TNC antenna interfaces
Antenna Need external antenna
Reading distance 0~15m (depends ontag performance and usage environment)
Writing distance 0~7m (depends ontag performance and usage environment)
Working environment
Working temperature -20~+70°C
Storage temperature -40~+85°C
Atmospheric pressure 86kPa~108kPa
Humidity 5%~95% RH no condensation
Protection level IP55
Support
Documents Demo software,API,development guidance and user’s manual

Supply Ability

  • 10000 Piece/Pieces per Week

Packaging & Delivery

  • Packaging Details: Neural Carton Package
  • Port: Shenzhen
  • Lead Time :
Quantity(Pieces) 1 – 100000 >100000
Est. Time(day) 15 To be negotiated
