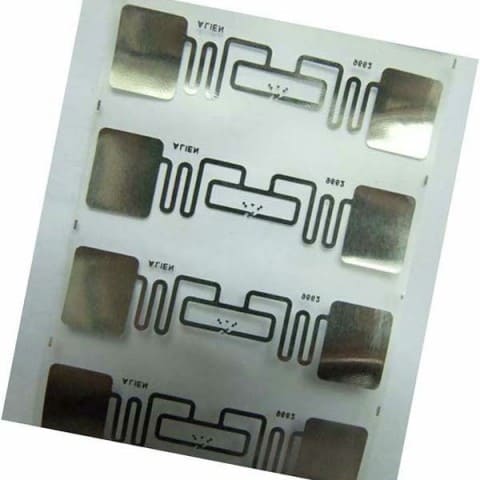

Alien Higgs-3 860-960MHz RFID UHF Inlay

RFID UHF Inlay,Library RFID paper sticker

Model No.: CXJ-DWI004

Company Brand: CXJ

Chip Frequency: UHF

Material: Inlays (on Transparent PET substrate) with or without adhesive side



RFID UHF Inlay are composed of an IC (Integrated Circuit, Chip) and a Dipole antenna. To attach the antenna to the IC we commonly use a strap.

RFID inlays can be either “wet” or “dry”

*Wet inlays are inlays that have an adhesive backing with a clear or colored topsurface of PVC,PET or paper, the PVC or PET wet inlays are commonly used to make “RFID Labels” where the inlay is placed on the back of the label with the adhesive side away from the label side so that the label has continuous adhesive. PLacement of the wet inlay on the label is very specific to each RFID printer in order to be programmed correctly by the printer and also to minimize the risk of damaging the RFID inlay while in the printer.

*Dry inlays are inlays that are attached to the substrate backing material commonly called the web.

Features: Unlike RFID prelam is a semi product which is used for making RFID cards and other related products. RFID Inlay can be used directly as RFID wet inlay and RFID dry inlay. The dry RFID UHF inlay is typically supplied on a substrate or carrier. If coating with adhesive, it is called a RFID UHF inlay. RFID white Wet Inlay is convenient and simple, more widely used.

Shenzhen Chuangxinjia Smart Card Co., Ltd. is the major leading RFID manufacturer in China, with more than 15 years production and R&D experience. Mainly products: rfid card, rfid tag, rfid wristband, rfid blocking sleeve, rfid keyfob, etc. Customize a RFID card according to your requirements with us. Welcome to consult with us.


Material Inlays (on Transparent PET substrate) with or without adhesive side
Common Size 85.6×54,82×23,Ф30,30×26,etc.Can be customized
Thickness: (UHF)Dry inlay 0.15mm, wet Inlay 0.23MM.

(HF)Dry inlay 0.07mm, wet Inlay 0.15MM.

Package For single piece : 100pcs/opp bag; 20 bags/inner box 6*9.3*22.5cm;10 boxes/outer carton 13*23.5*50cm

For roll package: 2000pcs/roll or 5000pcs/roll

Other custom package accepted

Delivery Time 8~15 days based on QTY
Shipping By express, sea or air, We will take photos or show you the goods by video after finish the goods to make sure quality and quantity are not an issue to stop our business relationship
Payment term T/T, Paypal, Western Union, L/C, RMB
MOQ 500pcs
Free Sample RFID UHF Inlay Available at any time
