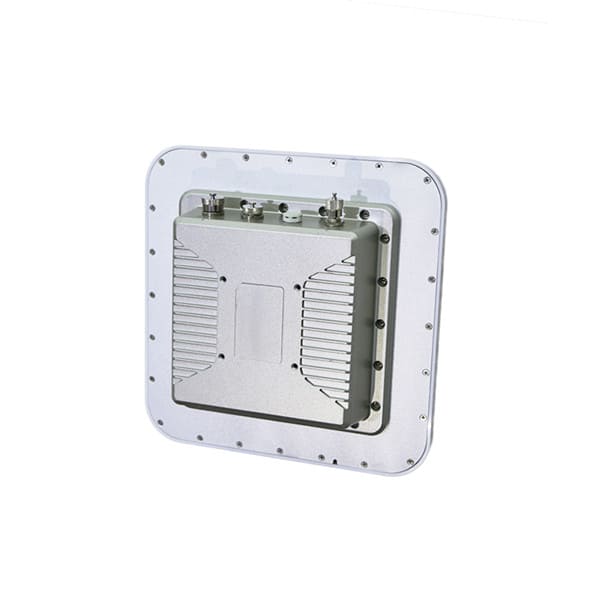

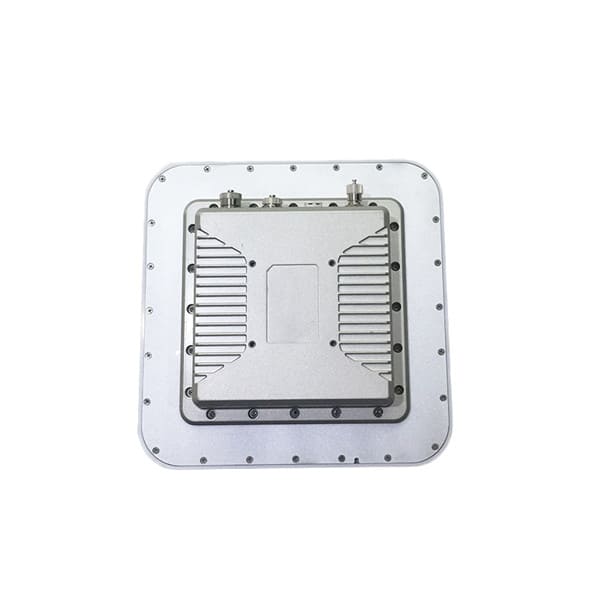

9dbi Antenna All-In-One UHF RFID Integrated Reader

high-performance UHF One-Piece Reader

UHF All-In-One Reader

  • Model Number: CXJ-RRW002
  • Shell material: Alloy+PC
  • Size: 290mm×290mm×115mm
  • Protocol: ISO18000-6B/6C
  • Output Power: 033dBm(adjustable by software)
  • Reading speed: >400 time/s
  • Working temperature: -30+70°C
  • Weight: About 2.5kg(Not including accessory)

Get A Quote Now! or Contact at Skype: live:cxjrfid

Description

Description

9dbi Antenna All-In-One UHF RFID Integrated Reader

All-In-One UHF RFID Integrated Reader is a high-performance UHF One-Piece Reader which integrated antenna and reader, and support ISO18000-6C/6B protocols. Its working frequency covers national standard dual frequency: 920MHz-925MHz, 840MHz-845MHz, FCC:902MHz-928MHz,ETSI:865MHz-868 MHz, and JP:916MHz-920MHz. Its output power is 0dBm-33dBm, and it has many good features, like long distance identification, fast speed, strong multi-label identification, strong anti-interference, high level protection and easy installing.

9dbi Antenna UHF RFID Integrated Reader for Inventory Management

Features

  • Using Impinj R2000 RF Platform.
  • IP66 protection, adapt to work outside all weather.
  • CPU: ARM9 platform, basic frequency is 400MHz.
  • Support ISO18000-6B/6C dual protocol.
  • Built-in Linux 2.6 operating system, support customer’s customized and extendable development.
  • Support variety of communication interfaces, like RJ-45/RS-232/RS-485/Wiegand etc.
  • Built-in 9dBi circular polarization antenna.
  • Support one external antenna to achieve one driving two devices set up.

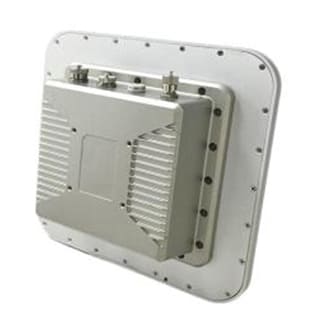

CJ2503A UHF One-Piece Reader 9dbi Antenna All-In-One UHF RFID Integrated Reader

Typical Applications

  • Intelligent vehicle management, like vehicle access control, ETC, Customs  Clearance, Parking, Automatic Car Weighing Industry etc
  • Automatic manufacturing, visual management etc
  • Logistics Industry, like container management, pallet management
  • Electronic Ticket, Card sender and Person Access control
  • Asset warehousing management

Main Technical Specification

Physical Data
Size 290mm×290mm×115mm
Weight About 2.5kg(Not including accessory)
Shell material Alloy+PC
Power DC 24V/2.5A
Working Power consumption 20W(Output Power 30dBm)
UHF RFID
Protocol ISO18000-6B/6C
Frequency GB :920925MHz,840MHz~845MHz

FCC: 902~928MHz

ETSI: 865~868MHz

JP  :916~920MHz (Optional)

Output Power 033dBm(adjustable by software)
Power Regulation 1dB Step
Spectrum bandwidth <200kHz
Spectrum Stability ≤±10ppm

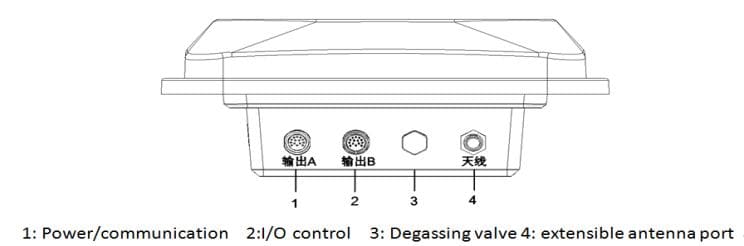

External Interface RJ-45,RS232,RS485, Wiegand
Operating Mode Fixed Frequency or Frequency hopping mode
RJ-45 communication rate 10M/100M self-adaptive
RS-232 interface Baud Rate 115200bps(Default)
I/O 2 relay output/ 2 optical coupler input
Reading speed >400 time/s
Antenna Built-in 9dBi circular polarization antenna, and support on external antenna
Reading distance 010m (According to the label performance and using environment)
Writing distance 05m (According to the label performance and using environment)
Working Environment
Working temperature -30+70°C
Storage temperature -40+85°C
Humidity 10%95% RH Without condensation
Support
Document Demo,API,Developing guide

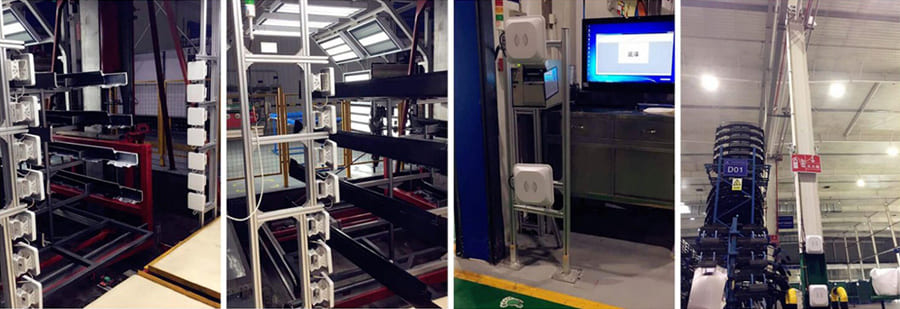

UHF RFID Integrated Reader Application:

CJ2503A UHF RFID Integrated Reader Application
