860-960Mhz External Antenna Handheld UHF RFID Reader

protable handheld uhf rfid reader android

Handheld UHF Reader (Android)

  • Model No.: CXJ-RRW005
  • Operation System: Android 5.1.1
  • Memory: 2GBLPDDR2、16GBiNand FLASH
  • Touch screen: Industrial multi-touch capacitive screen
  • Display: 4-inch TFT LCD screen
  • Working protocol: ISO18000-6C
  • Working frequency: UHF
  • Dimension: 190mm×84mm×42mm (Body size)
  • Data Communication: 3G, WIFI, Bluetooth4.0

Contact Us Today! | Skype: live:cxjrfid

Description

Description

External Antenna Handheld UHF RFID Reader (Android)

Handheld UHF RFID Reader support Android operating system, and works with ultra-high frequency RFID function only. Comply with Europe (ETSI EN 302 208), the United States (FCC part 15), Japan TELEC, China CMII and other mainstream UHF standards. According to ergonomic design, adopting external antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in RFID logistics management, asset management, warehousing management, library management, production management, ticket management and other fields.

Handheld UHF RFID Reader Features

  • Compact and portable, physical and virtual keyboards and flexible configuration.
  • Android 5.1 system, quad-core high-speed processor.
  • RFID frequency optional.
  • Diversified wireless communication.
  • Powerful bar code scanning function optional.
  • Standard WIFI, BT, expansion interface, providing a perfect interface.

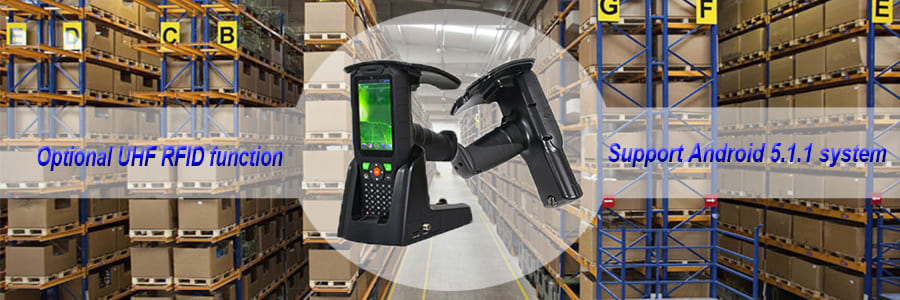

Wireless Handheld RFID Tag Reader Android

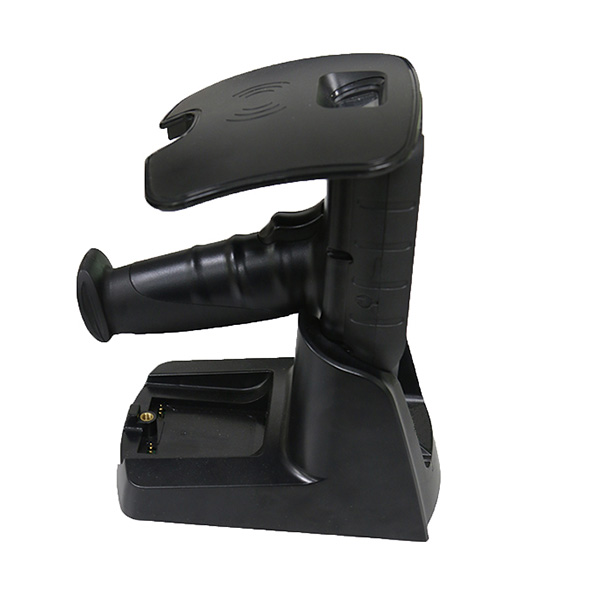

External Antenna Handhold Reader

Handhold Reader Specification(Android)

Basic Parameters
Size 190mm×84mm×42mm (Body size)

220mm×130mm×163mm (Full size, antenna & pistol included)

Weight About 700g
Display 4-inch TFT LCD screen
Touch Screen Industrial multi-touch capacitive screen
Expansion slot 1SIM
Supports up to 32GMicroSD card
Communication Interface USB2.0
Audio Voice broadcast
Indicator light Network indicator, charging indicator
Key Numeric keypad, Scan key, function key
Camera (optional) 8-megapixel rear camera with flash and autofocus function
Flashlight Low power LED lighting, used in emergency
GPS(Optional) Built-in GPS global positioning system, range error ± 5m
Performance Parameters
CPU MTK Quad-core1.4GHz
Memory 2GBLPDDR2、16GBiNand FLASH
Operating System Android 5.1.1
Expansion Supports up to 32GMicroSD card
Data Communication
3G (Optional) WCDMA(850/1900/2100MHz)
WIFI (Optional) 2.4G/5G, comply with IEEE 802.11a/b/g/n
Bluetooth Bluetooth4.0
Working Environment
Operating temp. -20 to 50℃ / -4℉ to 122℉
Storage temp. -30 to 70℃ / -22℉ to 158℉
Degree of Protection IP66
Battery Performance
Battery capacity Main battery: Lithium, 3.7V4000mAh

Built-in battery: Lithium, 3.7V3300mAh

Power Consumption Working: <6W,

Stand-by: <0.01W

Operating hours 10 hours or more (full charge)
Charging time <4.5hours
Barcode Scanning (Optional)
1D Barcode Undecoded and decoded

Scan mode: single-line

Interface: Undecoded:10-pin ZIF connector,

Decoded:12-pin ZIP connector RS-232(TTL)

Scanning angle: 47±3° (default) /35±3° (BWR)

Scan rate: 104 scans / s ± 12 scans / s

Barcode 2D Barcode:

PDF417, QR Code(Model 1/2), DataMatrix(ECC200.ECC000,050080.100.140),Aztec,Maxiccdeetc

1D Barcode:

Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,

China post 25,interteaved 2 of 5,ISBN/ISSN. Code93etc

RFID
UHF ETSI:865868MHz OR FCC:902928MHz
Working protocol: ISO18000-6C
Reading distance: 07m(Ranges depend on tags and environment)
Accessory
Standard Lithium battery, charging head, DC5V adapter, USB cable
Optional Recharging cradle
Support
Document Demo, API, software development guidance

Application

  • Container management, warehouse inventory management, cargo transfer tracking and so on.
  • Production automation, parts and components management.
  • Ticket and staff card identification.
  • Patrol, asset management etc.
